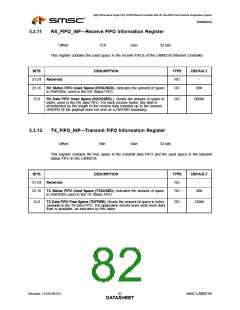

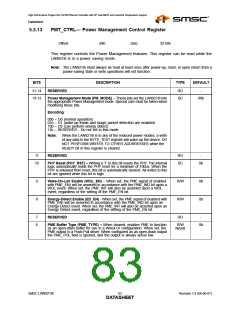

High-Performance Single-Chip 10/100 Ethernet Controller with HP Auto-MDIX and Industrial Temperature Support
Datasheet
BITS
DESCRIPTION
TYPE
DEFAULT
13-12
Threshold Control Bits (TR). These control the transmit threshold values
the MIL should use. These bits are used when the SF bit is reset. The host
can program the Transmit threshold by setting these bits. The intent is to
allow the MIL to transfer data to the final destination only after the threshold
value is met.
R/W
00
In 10Mbps mode (TTM = 1) the threshold is set as follows:
[13]
0
[12]
0
Threshold (DWORDS)
012h
018h
020h
028h
0
1
1
0
1
1
In 100Mbps mode (TTM = 0) the threshold is set by as follows:
[13]
0
[12]
0
Threshold (DWORDS)
020h
040h
080h
100h
0
1
1
0
1
1
11-3
2
Reserved
RO
RO
-
-
32/16-bit Mode. When set, the LAN9218i is set for 32-bit operation. When
clear, it is configured for 16-bit operation. This field is the value of the
D32/nD16 strap.
1
0
Soft Reset Time-out (SRST_TO). If a software reset is attempted when the
internal PHY is not in the operational state (RX_CLK and TX_CLK running),
the reset will not complete and the soft reset operation will time-out and this
bit will be set to a ‘1’. The host processor must correct the problem and
issue another soft reset.
RO
SC
0
0
Soft Reset (SRST). Writing 1 generates a software initiated reset. This reset
generates a full reset of the MAC CSR’s. The SCSR’s (system command
and status registers) are reset except for any NASR bits. Soft reset also
clears any TX or RX errors (TXE/RXE). This bit is self-clearing.
Notes:
Do not attempt a soft reset unless the internal PHY is fully awake and
operational. After a PHY reset, or when returning from a reduced power
state, the PHY must be given adequate time to return to the operational
state before a soft reset can be issued. The internal RX_CLK and TX_CLK
signals must be running for a proper software reset. Please refer to
Section 6.8, "Reset Timing," on page 124 for details on PHY reset timing.
The LAN9218i must always be read at least once after power-up, reset,
or upon return from a power-saving state or write operations will not
function.
SMSC LAN9218i
79
Revision 1.8 (06-06-07)
