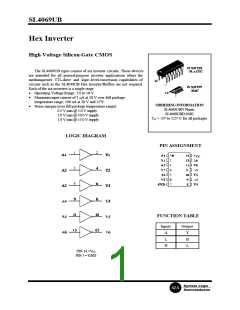

SL4069UB
Hex Inverter
High-Voltage Silicon-Gate CMOS
The SL4069UB types consist of six inverter circuits. These devices
are intended for all general-purpose inverter applications where the
medium-power TTL-drive and logic-level-conversion capabilities of
circuits such as the SL4049UB Hex Inverter/Buffers are not required.
Each of the six inverters is a single stage
·
·

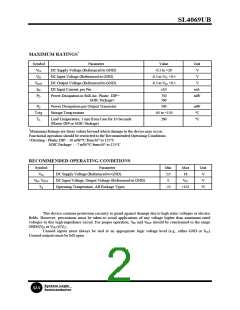

Operating Voltage Range: 3.0 to 18 V

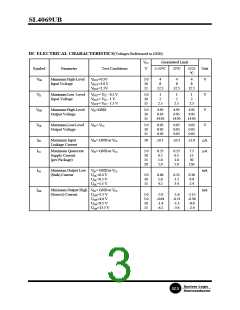

Maximum input current of 1 mA at 18 V over full package-
temperature range; 100 nA at 18 V and 25°C
Noise margin (over full package temperature range):
0.5 V min @ 5.0 V supply
ORDERING INFORMATION
SL4069UBN Plastic
·
SL4069UBD SOIC
TA = -55° to 125° C for all packages
1.0 V min @ 10.0 V supply
1.0 V min @ 15.0 V supply

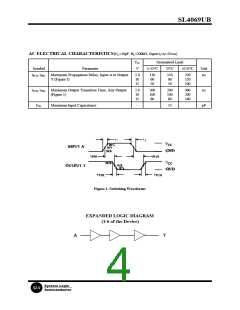

LOGIC DIAGRAM
PIN ASSIGNMENT
FUNCTION TABLE
Inputs
Output
A
L
Y
H
L
H
PIN 14 =VCC
PIN 7 = GND
