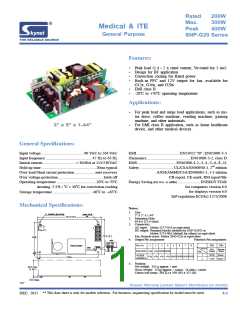

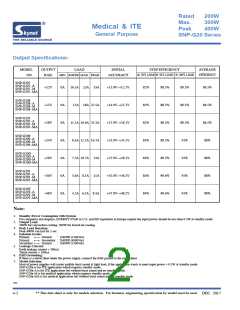

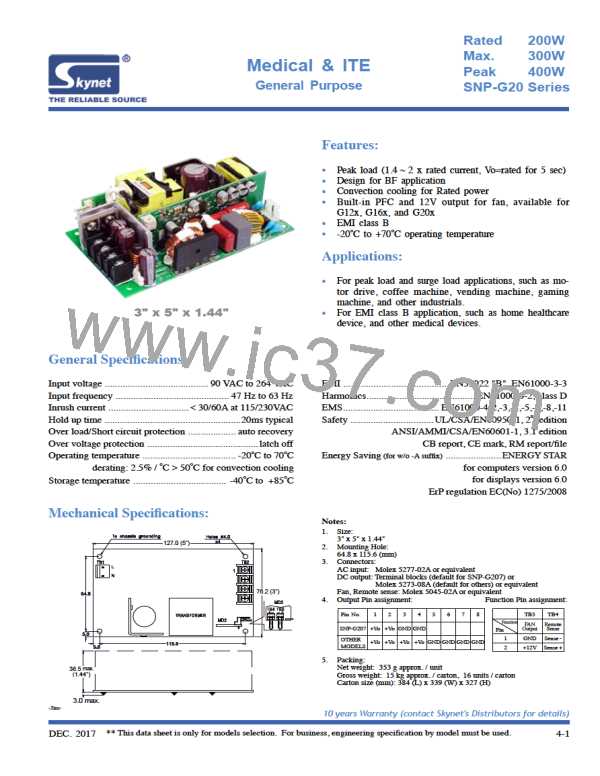

Rated
Max.
Peak
200W
300W
400W
Medical & ITE
General Purpose
SNP-G20 Series

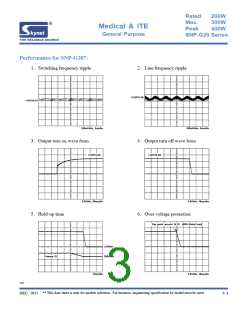

Performance for SNP-G207:
1. Switching frequency ripple
2. Line frequency ripple
+12V/16.5A
+12V/16.5A
100mV/div,ꢀ 5us/div
100mV/div,ꢀ 5ms/div
3. Output turn on wave form
4. Output turn off wave form
+12V/16.5A
+12V/16.5A
5.0V/div,ꢀ 20ms/div
5.0V/div,ꢀ 10ms/div
5. Hold-up time
6. Over voltage protection
ꢀ ꢀ Tripꢀ pointꢀ aroundꢀ 14.3Vꢀ ꢀ (60%ꢀ Ratedꢀ load)
5.0V/div
200V/div
Primaryꢀ DC
10ms/div
5.0V/div,ꢀ 10ms/div
-Jim-
** This data sheet is only for models selection. For business, engineering specification by model must be used.
DEC. 2017
4-3
SKYNET [ Skynet Electronic Copyright ]
