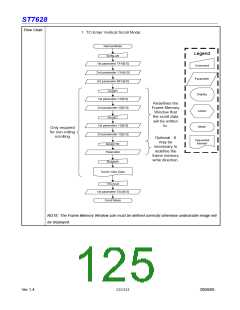

ST7628
* Row1: Frame memory row address 1.
If End Line = Start Line then the Partial Area will be one line deep.
Restriction PSL[6:0] and PEL[6:0] is based on line unit.
PSL[6:0]=00h, 01h, 02h, 03h, … , 45h
PEL[6:0]= 00h, 01h, 02h, 03h, … , 45h
Register
Status
Availability
Yes
Availability
Normal Mode On, Idle Mode Off, Sleep Out
Normal Mode On, Idle Mode On, Sleep Out
Partial Mode On, Idle Mode Off, Sleep Out
Partial Mode On, Idle Mode On, Sleep Out
Sleep In
Yes
Yes
Yes
Yes
Default
Status
Default Value
PSL [6:0]
00h (00d)
00h (00d)
00h (00d)
PEL [6:0]
45h (69d)
45h (69d)
45h (69d)
Power On Sequence
S/W Reset
H/W Reset
Ver 1.4
121/213
2008/08
