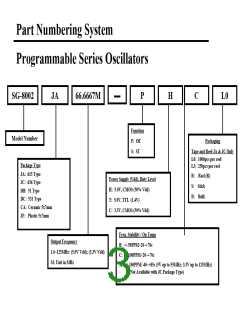

Part Numbering System
Programmable Series Oscillators
SG-8002
JA
66.6667M
P
H
C
L0
Function
P: OE
S: ST
Model Number
Packaging
Tape and Reel-JA & JC Only
L0: 1000pcs per reel
Package Type
JA: 615 Type
JC: 636 Type
DB: 51 Type
DC: 531 Type
L3: 250pcs per reel
R: Reel (R)
S: Stick
Power Supply (Vdd), Duty Level
H: 5.0V, CMOS (50% Vdd)
T: 5.0V, TTL (1.4V)
B: Bulk
CA: Ceramic 5x7mm
JF: Plastic 5x7mm
C: 3.3V, CMOS (50% Vdd)
Freq. Stability / Op Temp
B: +/-50PPM/-20~+70c
C: +/-100PPM/-20~+70c
Output Frequency
1.0~125MHz: (5.0V Vdd); (3.3V Vdd)
M: Unit in MHz
M: +/-100PPM/-40~+85c (5V up to 55MHz; 3.3V up to 125MHz)
(Not Available with JC Package Type)
SEIKO [ SEIKO EPSON CORPORATION ]
