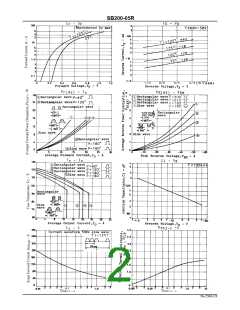

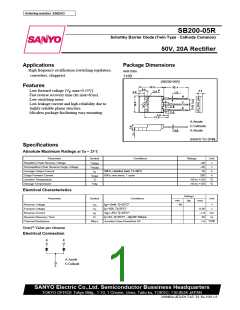

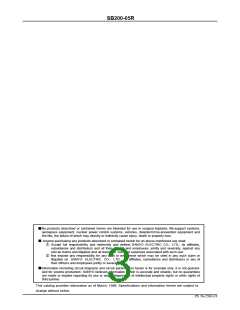

 浏览型号SB200-05R的Datasheet PDF文件第2页浏览型号SB200-05R的Datasheet PDF文件第3页

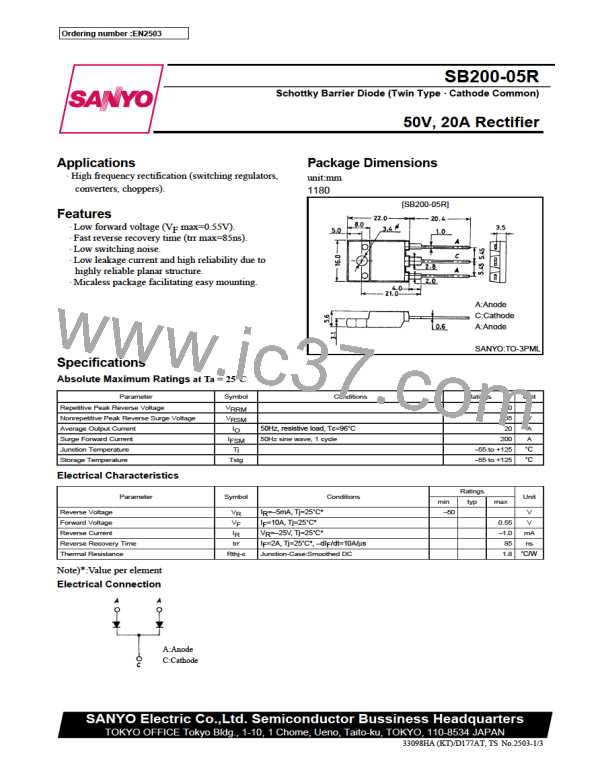

Ordering number :EN2503
Applications
· High frequency rectification (switching regulators,
converters, choppers).
Package Dimensions
unit:mm
1180
[SB200-05R]
Features
· Low forward voltage (VF max=0.55V).
· Fast reverse recovery time (trr max=85ns).
· Low switching noise.
· Low leakage current and high reliability due to
highly reliable planar structure.
· Micaless package facilitating easy mounting.
A:Anode
C:Cathode
A:Anode
SANYO:TO-3PML
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Repetitive Peak Reverse Voltage
Nonrepetitive Peak Reverse Surge Voltage
Average Output Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRRM
VRSM
IO
IFSM
Tj
Tstg
Conditions
Ratings
–50
–55
Unit
V
V
A
A
50Hz, resistive load, Tc=96˚C
50Hz sine wave, 1 cycle
20
200
–55 to +125
–55 to +125
˚C
˚C
Electrical Characteristics
Parameter
Reverse Voltage
Forward Voltage
Reverse Current
Reverse Recovery Time
Thermal Resistance
Symbol
VR
VF
IR
trr
Rthj-c
Conditions
Ratings
min
–50
0.55
–1.0
85
1.8
typ
max
Unit
V
V
mA
ns
IR=–5mA, Tj=25˚C*
IF=10A, Tj=25˚C*
VR=–25V, Tj=25˚C*
IF=2A, Tj=25˚C*, –dIF/dt=10A/µs
Junction-Case:Smoothed DC
˚C/W
Note)*:Value per element
Electrical Connection
A:Anode
C:Cathode
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
33098HA (KT)/D177AT, TS No.2503-1/3
