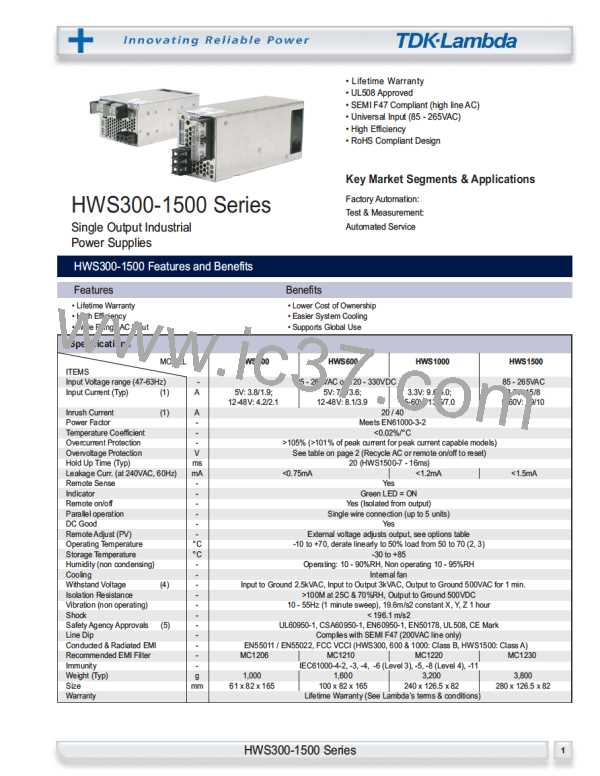

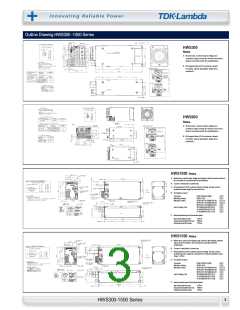

Outline Drawing HWS300 -1500 Series
HWS300
Notes
A: Model name, nominal output voltage and
maximum output current are shown in the name
plate in accordance with the specifications.
B: M4 tapped holes (8) for customer chassis
mounting. (Screw penetration depth 6mm
maximum.)
HWS600
Notes
A: Model name, nominal output voltage and
maximum output current are shown in the name
plate in accordance with the specifications.
B: M4 tapped holes (8) for customer chassis
mounting. (Screw penetration depth 6mm
maximum.)
HWS1000 Notes
A: Model name, nominal output voltage and maximum output current are shown in
the name plate in accordance with the specifications.
B: Country of manufacture is shown here.
C: M4 tapped holes (16) for customer chassis mounting. (Screws must not
protrude into power supply by more than 6mm.)
D: I/O Signal Connector.
Connector:
S12B-PHDSS(LF)(SN)
(JST)
Matching Housing:
Matching Contact:
PHDR-12VS
(JST)
SPHD-002T-P0.5(AWG28~24)
SPHD-001T-P0.5(AWG26~22)
BPHD-001T-P0.5(AWG26~22)
YRS-620(SPHD-002T-P0.5)
YC-610R(SPHD-001T-P0.5)
YC-610R(BPHD-001T-P0.5)
(JST) or
(JST) or
(JST)
Hand Crimping Tool:
(JST)
(JST)
(JST)
E: Recommended torque for the terminal piece
Input terminal (M4 screw): 1.27N•m
Output terminal (M8 bolt & nut): 10.8N•m
Output terminal (M4 screw):
1.27N•m
HWS1500 Notes
A: Model name, option, input voltage range, nominal output voltage, maximum
output current are shown in the name plate in accordance with the
specifications.
B: Country of manufacture is shown here.
C: M4 tapped holes (16) for customer chassis mounting. (Screws must not
protrude into power supply by more than 6mm.) Recommended M4 screws
torque: 1.27N•m
D: I/O Signal Connector.
Connector:
S12B-PHDSS(LF)(SN)
(JST)
Matching Housing:
Matching Contact:
PHDR-12VS
(JST)
SPHD-002T-P0.5(AWG28~24)
SPHD-001T-P0.5(AWG26~22)
BPHD-001T-P0.5(AWG26~22)
YRS-620(SPHD-002T-P0.5)
YC-610R(SPHD-001T-P0.5)
YC-610R(BPHD-001T-P0.5)
(JST) or
(JST) or
(JST)
Hand Crimping Tool:
(JST)
(JST)
(JST)
E: Recommended torque for the terminal piece
Input terminal (M4 screw): 1.27N•m
Output terminal (M8 bolt & nut): 10.8N•m
Output terminal (M4 screw): 1.27N•m
3
HWS300-1500 Series
