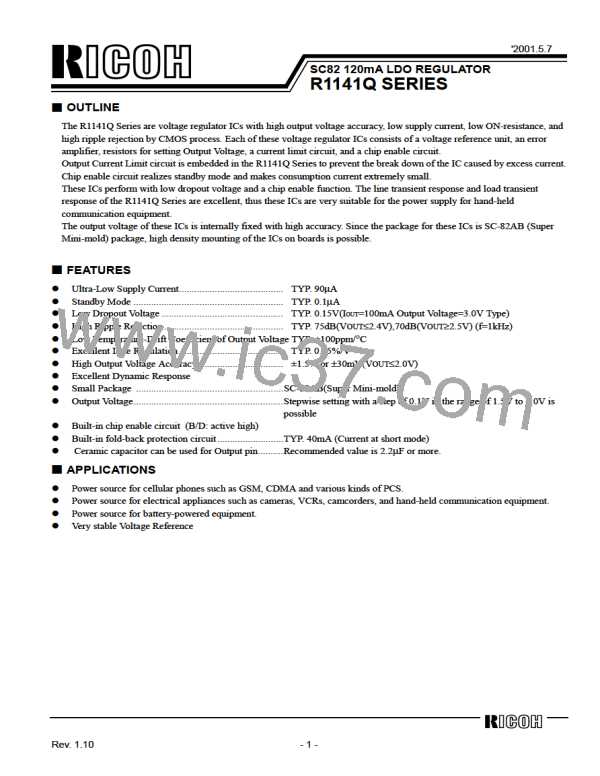

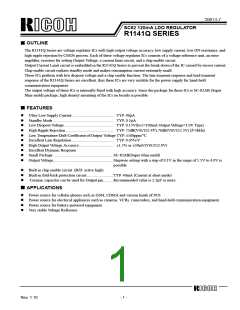

'2001.5.7
SC82 120mA LDO REGULATOR
R1141Q SERIES
s
OUTLINE
The R1141Q Series are voltage regulator ICs with high output voltage accuracy, low supply current, low ON-resistance, and
high ripple rejection by CMOS process. Each of these voltage regulator ICs consists of a voltage reference unit, an error
amplifier, resistors for setting Output Voltage, a current limit circuit, and a chip enable circuit.
Output Current Limit circuit is embedded in the R1141Q Series to prevent the break down of the IC caused by excess current.
Chip enable circuit realizes standby mode and makes consumption current extremely small.
These ICs perform with low dropout voltage and a chip enable function. The line transient response and load transient
response of the R1141Q Series are excellent, thus these ICs are very suitable for the power supply for hand-held
communication equipment.
The output voltage of these ICs is internally fixed with high accuracy. Since the package for these ICs is SC-82AB (Super
Mini-mold) package, high density mounting of the ICs on boards is possible.
s
FEATURES
Ultra-Low Supply Current......................................... TYP. 90µA
Standby Mode ........................................................... TYP. 0.1µA
Low Dropout Voltage ................................................ TYP. 0.15V(I
OUT
=100mA Output Voltage=3.0V Type)
High Ripple Rejection ............................................... TYP. 75dB(V
OUT
≤2.4V),70dB(V
OUT
≥2.5V)
(f=1kHz)
Low Temperature-Drift Coefficient of Output Voltage TYP. ±100ppm/°C
Excellent Line Regulation ......................................... TYP. 0.05%/V
High Output Voltage Accuracy.................................. ±1.5% or
±30mV(V
OUT
≤2.0V)
Excellent Dynamic Response
Small Package ..........................................................SC-82AB(Super Mini-mold)
Output Voltage...........................................................Stepwise setting with a step of 0.1V in the range of 1.5V to 4.0V is
possible
Built-in chip enable circuit (B/D: active high)
Built-in fold-back protection circuit ..........................TYP. 40mA (Current at short mode)
Ceramic capacitor can be used for Output pin..........Recommended value is 2.2µF or more.
s
APPLICATIONS
Power source for cellular phones such as GSM, CDMA and various kinds of PCS.
Power source for electrical appliances such as cameras, VCRs, camcorders, and hand-held communication equipment.
Power source for battery-powered equipment.
Very stable Voltage Reference
Rev. 1.10
-1-
