ZULU Modem

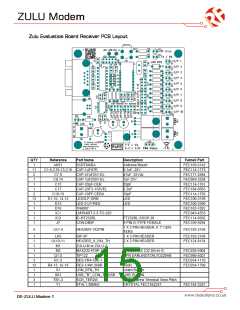

Zulu Evaluation Board
The ZULU EVAL Boards provide a ready made platform which can be used to
build several projects which demonstrate the capabilities of ZULU Modules
providing ready made Telemetry and Modem Solutions.
Features
•
•
•
•
•
Easy assemble Projects;
Watchdog Feature
Direct Antenna Connection
9-12Vdc Power in Screw Term
LED Indication of
•
•
•
Power
Transmit / Receiver
RF Error
•
All Thro Hole Components
ZULU Telemetry
•
•
•
•
10 Channel Telemetry
10 LED Outputs
2 Analogue RF Links
2 Analogue Outputs
ZULU Modem
•
•
RS232 Modem
USB Modem
The Evaluation boards are sold as a TX and RX PCB pair, ready for component population.
Schematics are shown below, not all components are fitted for each of the projects.
Part No
Description
ZULU-EVAL
Tx and RX PCB Pair
PSU-12V1-UK
Plugtop Power Supply 12V 100mA
DS-ZULU Modem-1
