RF / IR Encoder / Decoder Chipset
RF Evaluation Boards,
RF600E
RF600D
RFEVAL Evaluation Kit
• Remote Telemetry Evaluation
• AM and FM & IR Technology

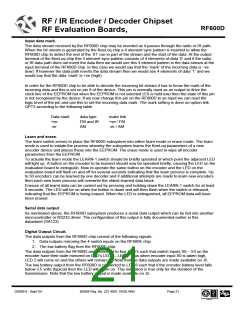

• Digital and RS232 Serial Data Outputs
• Hardware Evaluation Platform
• Range Testing
• Target Environment Testing
• Antenna Evaluation
• Uses RF600 Encoder/Decoder (Keeloq)

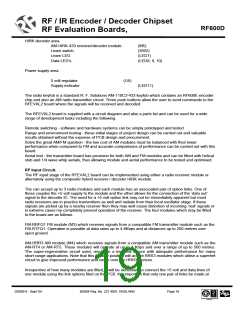

The RFEVAL2 / 3 are hardware development platforms designed to assist the engineer with the design of
a remote telemetry application. This kit provides several projects. Each project utilises an ‘off the shelf’
transmitter encoder incorporating the RF600E. The RFEVAL receiver board use s the RF600D to perform
RF / IR reception and decoding providing a variety of outputs.
Our aim with this Evaluation kit is to assist the engineer in achieving a remote telemetry application with;
1. Optimum Range (we expect you to achieve)
a. AM project upto 80m
b. FM project upto 150m
2. Design of simple integrated receiver decoder
3. Minimal hardware costs for the receiver decoder
RF EVAL2 Contents List:
Item
1
Part No
Description
Qty
1
AM-110C3-433 pocket keyfob transmitter433MHz, 3 Switch
2
3
102C4-433F
SA123
Transmitter/Encoder 433.92MHz, Hand Held, 4 Switch
RFEVAL2 Receiver Decoder Assembly
1
1
4
5
6
AM-HRR3-433
AM-RRS3-433
AM-HiRK-433
Receiver 'Hybrid' Module AM 433MHz, SIL
Receiver 'Hybrid' Module Super Het, AM 433MHz, SIL
Rx/Decoder AM Superhet 433MHz SIL Hybrid5V Keeloq
1
1
1
7
FM-RRFQ1-433 FM Receiver 433.92MHz
1
8
9
10
FLEXI-M4-433
PHC-M4-433
BATT-PP3
¼ Wave Antenna
Helical Antenna
PP3 Battery
1
1
1
All components required to complete the following projects are supplied.
Project
Transmitter
AM-110C3-433
AM-110C3-433
AM-110C3-433
102C4-433F
Receiver
Outputs
Digital
Range
1
2
2
4
AM-HiRKB-433
AM-HRR3-433
AM-RRS3-433
FM-RRFQ1-433
100m
40m
Digital & RS232
Digital & RS232
Digital & RS232
100m
150m

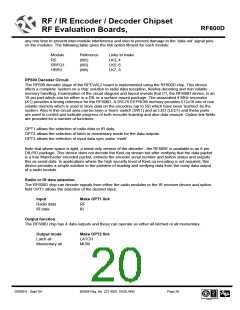

RFEVAL3 consists a Receiver decoder board only with the RF600D, this requires the relevant RF
Receiver module and antenna to generate a complete receiver Decoder (this is an RF600D design)
Contents List:
Item
1
2
Part No
SA123
BATT-PP3
Description
Telemetry Receiver Decoder Board
PP3 Battery
Qty
1
1
