06325-M 参数 Datasheet PDF下载

06325-M图片预览
型号: 06325-M
PDF下载: 下载PDF文件 查看货源
内容描述: 风扇滤网( 80毫米) [FAN FILTER SCREEN (80mm)]
分类和应用: 风扇LTE
文件页数/大小: 1 页 / 176 K
品牌: QUALTEK [ QUALTEK ELECTRONICS CORPORATION ]
更多
  •
  • 供货商
  • 型号*
  • 数量*
  • 厂商
  • 封装
  • 批号
  • 交易说明
  • 询价
批量询价选中的记录已选中0条,每次最多15条。

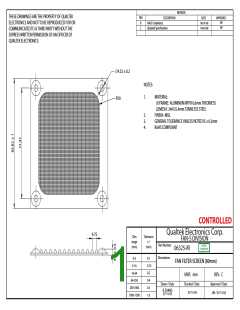

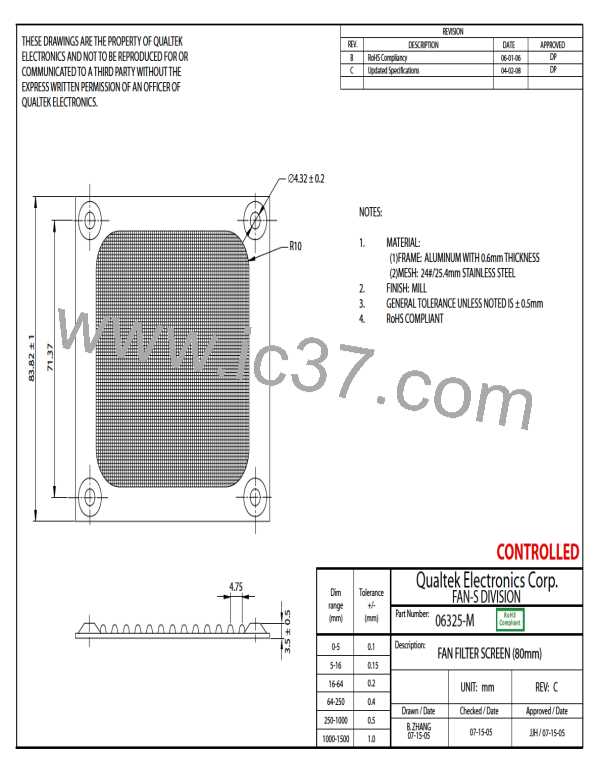

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR OR
COMMUNICATED TO A THIRD PARTY WITHOUT THE
EXPRESS WRITTEN PERMISSION OF AN OFFICER OF
QUALTEK ELECTRONICS.
REVISION
REV.
B
C
DESCRIPTION
RoHS Compliancy
Updated Specifications
DATE
06-01-06
04-02-08
APPROVED
DP
DP
∅4.32
± 0.2
NOTES:
R10
1.
MATERIAL:
(1)FRAME: ALUMINUM WITH 0.6mm THICKNESS
(2)MESH: 24#/25.4mm STAINLESS STEEL
FINISH: MILL
GENERAL TOLERANCE UNLESS NOTED IS ± 0.5mm
RoHS COMPLIANT
2.
3.
4.
83.82 ± 1
71.37
4.75
3.5 ± 0.5
Dim
range
(mm)
0-5
5-16
16-64
64-250
250-1000
1000-1500
Tolerance
+/-
(mm)
0.1
0.15
0.2
0.4
0.5
1.0
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
FAN-S DIVISION
06325-M
FAN FILTER SCREEN (80mm)
UNIT: mm
REV: C
Approved / Date
JJH / 07-15-05
Drawn / Date
B. ZHANG
07-15-05
Checked / Date
07-15-05
