PMC-Sierra, Inc.
PRELIMINARY
PM5381 S/UNI-2488
DATASHEET
PMC-2000489
ISSUE 1
SATURN USER NETWORK INTERFACE FOR 2488 MBIT/S
Register 0740H: RCFP Configuration
Bit
Type
Function
Default
Bit 15
Bit 14
Bit 13
Bit 12
Bit 11
Bit 10
Bit 9
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Reserved
Reserved
Reserved
Reserved
Reserved
POS_SEL
INVERT
0
0
0
0
0
0
0
0
0
0
0
1
1
0
1
0
Bit 8

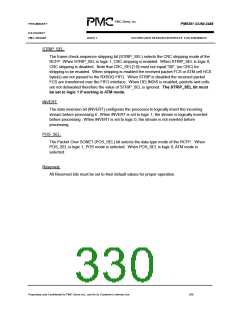

STRIP_SEL
Reserved
IDLEPASS
CRCPASS

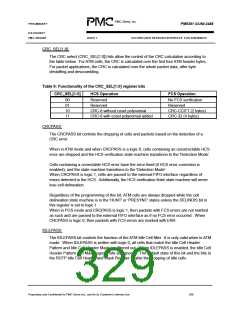

CRC_SEL[1]
CRC_SEL[0]
RXOTYP
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
DESCRMBL
PROV
Bit 0
PROV:
The processor provision bit (PROV) is used to enable the RCFP. When PROV is logic 0, the
RCFP ATM and packet processors are disabled and will not transfer any valid data to the
Receive FIFO interface. When PROV is logic 1, the RCFP ATM or packet processor is
enabled and will process data presented to it and transfer data to the Receive FIFO
(RXSDQ).
DESCRMBL:
The DESCRMBL bit controls the descrambling of the packet or ATM cell payload with the
43
polynomial x + 1. When DESCRMBL is set to logic 0, frame or cell payload descrambling
is disabled. When DESCRMBL is set to logic 1, payload descrambling is enabled.
RXOTYP:
The RXOTYP bit determines if an incoming alarm signal (from IPAIS[x]) will stop a packet by
simply asserting EOP, (RXOTYP set to logic 0), or by asserting both EOP and ERR,
(RXOTYP set to logic 1). When RXOTYP is set to logic 0, premature termination of the
packet will result in that packet failing a FCS check.
This bit is only valid when in POS mode. In ATM mode the RCFP will finish processing any
cell in progress and then stop until the alarm signal is cleared.
