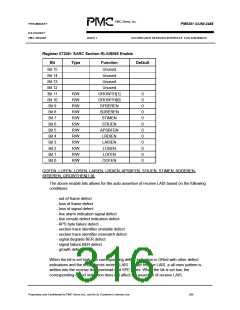

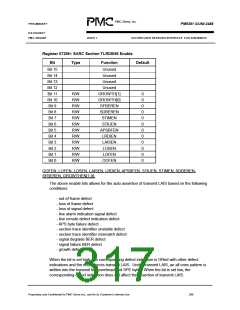

LAISEN:
The LAIS enable bit allows the line alarm indication signal defect to be ORed into the SALM
output. When the LAISEN bit is set high, the corresponding defect indication is ORed with
other defect indications and output on SALM. When the LAISEN bit is set low, the
corresponding defect indication does not affect the SALM output.
LRDIEN:
The LRDI enable bit allows the line remote defect indication defect to be ORed into the SALM
output. When the LRDIEN bit is set high, the corresponding defect indication is ORed with
other defect indications and output on SALM. When the LRDIEN bit is set low, the
corresponding defect indication does not affect the SALM output.
APSBFEN:
The APSBF enable bit allows the APS byte failure defect to be ORed into the SALM output.
When the APSBFEN bit is set high, the corresponding defect indication is ORed with other
defect indications and output on SALM. When the APSBFEN bit is set low, the corresponding
defect indication does not affect the SALM output.
STIUEN:
The STIU enable bit allows the section trace identifier unstable defect to be ORed into the
SALM output. When the STIUEN bit is set high, the corresponding defect indication is ORed
with other defect indications and output on SALM. When the STIUEN bit is set low, the
corresponding defect indication does not affect the SALM output.
STIMEN:
The STIM enable bit allows the section trace identifier mismatch defect to be ORed into the
SALM output. When the STIMEN bit is set high, the corresponding defect indication is ORed
with other defect indications and output on SALM. When the STIMEN bit is set low, the
corresponding defect indication does not affect the SALM output.
SDBEREN:
The SDBER enable bit allows the signal degrade BER defect to be ORed into the SALM
output. When the SDBEREN bit is set high, the corresponding defect indication is ORed with
other defect indications and output on SALM. When the SDBEREN bit is set low, the
corresponding defect indication does not affect the SALM output.
SFBEREN:
The SFBER enable bit allows the signal failure BER defect to be ORed into the SALM output.
When the SFBEREN bit is set high, the corresponding defect indication is ORed with other
defect indications and output on SALM. When the SFBEREN bit is set low, the
corresponding defect indication does not affect the SALM output.
