PixArt Imaging Inc.
Track-on-Glass Laser Sensor

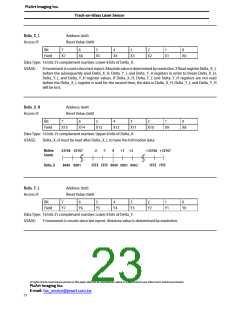

Delta_X_L
Address: 0x03
Access: R
Reset Value: 0x00
Bit
7
6
5
4
3
2
1
0
Field
X7
X6
X5
X4
X3
X2
X1
X0
Data Type: 16 bits 2’s complement number. Lower 8 bits of Delta_X.
USAGE:
X movement is counts since last report. Absolute value is determined by resolution. X Read register Delta_X_L
before the subsequently read Delta_X_H, Delta_Y_L and Delta_Y_H registers in order to freeze Delta_X_H,
Delta_Y_L and Delta_Y_H register values. If Delta_X_H, Delta_Y_L and Delta_Y_H registers are not read
before the Delta_X_L register is read for the second time, the data in Delta_X_H, Delta_Y_L and Delta_Y_H
will be lost.
Delta_X_H
Address: 0x04
Access: R
Reset Value: 0x00
Bit
7
6
5
4
3
2
1
0
Field
X15
X14
X13
X12
X11
X10
X9
X8
Data Type: 16 bits 2’s complement number. Upper 8 bits of Delta_X.
USAGE:
Delta_X_H must be read after Delta_X_L to have the full motion data.
Motion
Counts
-32768 -32767
8000 8001
-2
-1
0
+1 +2
+32766 +32767
7FFE 7FFF
Delta_X
FFFE FFFF 0000 0001 0002
Delta_Y_L
Address: 0x05
Access: R
Reset Value: 0x00
Bit
7
6
5
4
3
2
1
0
Field
Y7
Y6
Y5
Y4
Y3
Y2
Y1
Y0
Data Type: 16 bits 2’s complement number. Lower 8 bits of Delta_Y.
USAGE: Y movement is counts since last report. Absolute value is determined by resolution.
All rights strictly reserved any portion in this paper shall not be reproduced, copied or transformed to any other forms without permission.
PixArt Imaging Inc.
E-mail: fae_service@pixart.com.tw
23
