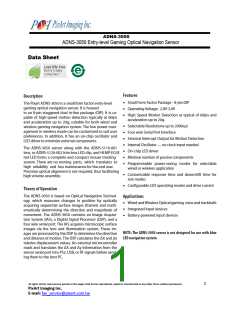

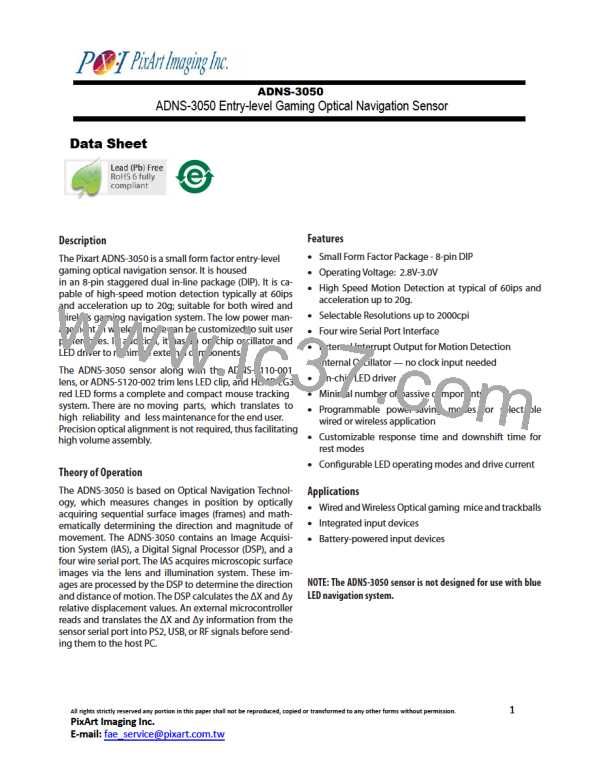

ADNS-3050
ADNS-3050 Entry-level Gaming Optical Navigation Sensor
Data Sheet
Features
Description
Small Form Factor Package - 8-pin DIP
Operating Voltage: 2.8V-3.0V
The Pixart ADNS-3050 is a small form factor entry-level
gaming optical navigation sensor. It is housed
in an 8-pin staggered dual in-line package (DIP). It is ca-
pable of high-speed motion detection typically at 60ips
and acceleration up to 20g; suitable for both wired and
wireless gaming navigation system. The low power man-
agement in wireless mode can be customized to suit user
preferences. In addition, it has an on-chip oscillator and
LED driver to minimize external components.
High Speed Motion Detection at typical of 60ips and
acceleration up to 20g.
Selectable Resolutions up to 2000cpi
Four wire Serial Port Interface
External Interrupt Output for Motion Detection
Internal Oscillator — no clock input needed
On-chip LED driver
trim MFOT LED clip, and HLMP-EG3E
The ADNS-3050 sensor along with the ADNS-5110-001
lens, PS " %/ 4
red LED forms a complete and compact mouse tracking
system. There are no moving parts, which translates to
high reliability and less maintenance for the end user.
Precision optical alignment is not required, thus facilitating
high volume assembly.
Minimal number of passive components
Programmable power-saving modes for selectable
wired or wireless application
Customizable response time and downshift time for
rest modes
Configurable LED operating modes and drive current
Theory of Operation
The ADNS-3050 is based on Optical Navigation Technol-
ogy, which measures changes in position by optically
acquiring sequential surface images (frames) and math-
ematically determining the direction and magnitude of
movement. The ADNS-3050 contains an Image Acquisi-
tion System (IAS), a Digital Signal Processor (DSP), and a
four wire serial port. The IAS acquires microscopic surface
images via the lens and illumination system. These im-
ages are processed by the DSP to determine the direction
and distance of motion. The DSP calculates the ΔX and Δy
relative displacement values. An external microcontroller
reads and translates the ΔX and Δy information from the
sensor serial port into PS2, USB, or RF signals before send-
ing them to the host PC.
Applications
Wired and Wireless Optical gaming mice and trackballs
Integrated input devices
Battery-powered input devices
NOTE: The ADNS-3050 sensor is not designed for use with blue
LED navigation system.
All rights strictly reserved any portion in this paper shall not be reproduced, copied or transformed to any other forms without permission.
PixArt Imaging Inc.
E-mail: fae_service@pixart.com.tw
1
PIXART [ PIXART IMAGING INC. ]
