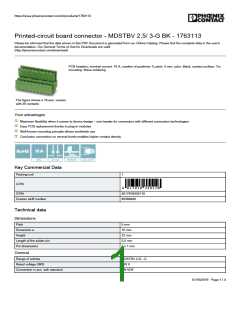

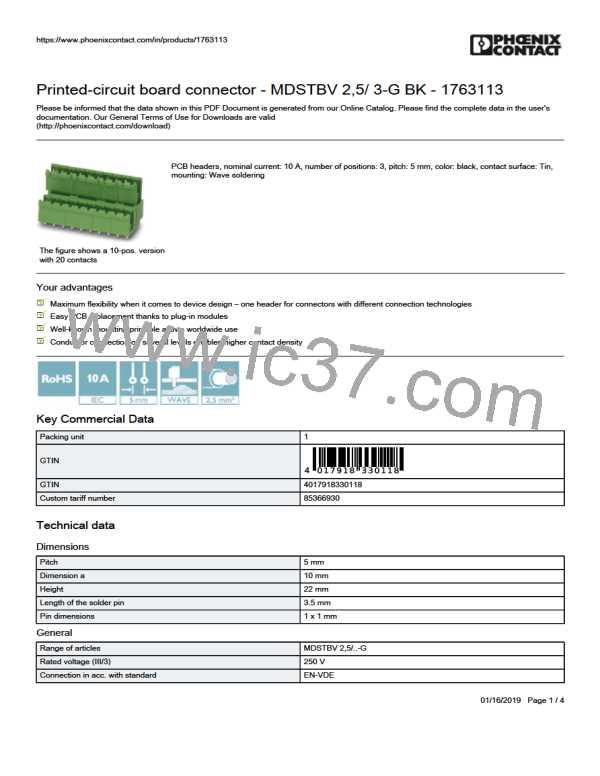

Printed-circuit board connector - MDSTBV 2,5/ 3-G BK - 1763113
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 10 A, number of positions: 3, pitch: 5 mm, color: black, contact surface: Tin,
mounting: Wave soldering
The figure shows a 10-pos. version
with 20 contacts
Your advantages
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Easy PCB replacement thanks to plug-in modules
Well-known mounting principle allows worldwide use
Conductor connection on several levels enables higher contact density
Key Commercial Data
Packing unit
1
GTIN
GTIN
4017918330118
85366930
Custom tariff number
Technical data
Dimensions
Pitch
5 mm
Dimension a
Height
10 mm
22 mm
3.5 mm
1 x 1 mm
Length of the solder pin
Pin dimensions
General
Range of articles
MDSTBV 2,5/..-G
250 V
Rated voltage (III/3)
Connection in acc. with standard
EN-VDE

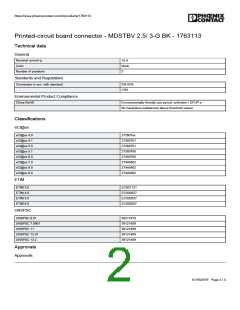

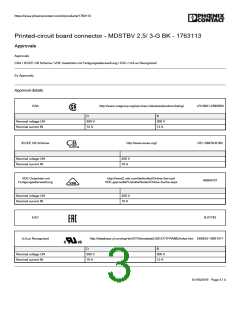

01/16/2019 Page 1 / 4
