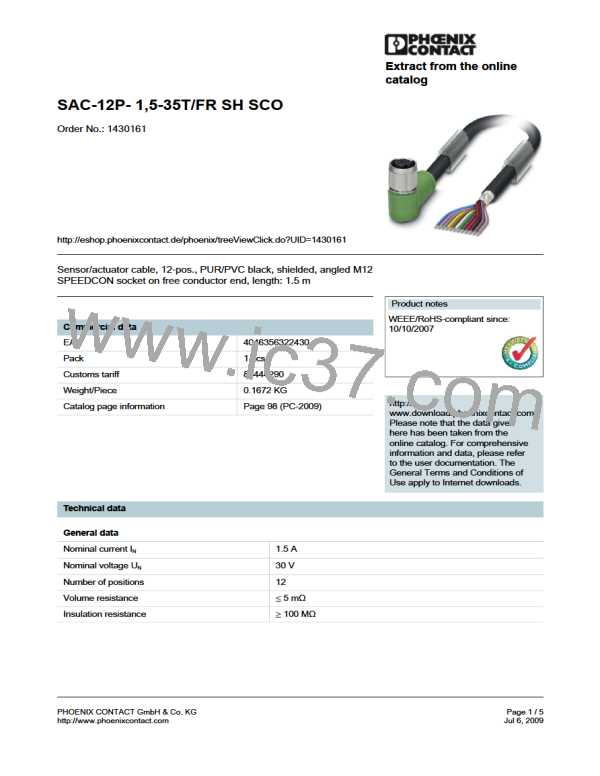

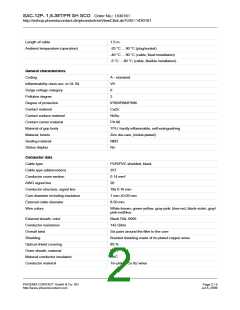

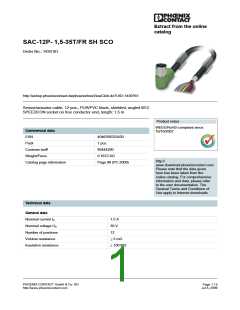

SAC-12P- 1,5-35T/FR SH SCO Order No.: 1430161
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1430161
Length of cable
1.5 m
Ambient temperature (operation)
-25 °C ... 90 °C (plug/socket)
-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
General characteristics
Coding
A - standard
Inflammability class acc. to UL 94
Surge voltage category
Pollution degree
V0
II
3
Degree of protection
Contact material
IP65/IP68/IP69K
CuZn
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Ni/Au
PA 66
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, (nickel-plated)
Sealing material
NBR
No
Status display
Conductor data
Cable type
PUR/PVC shielded, black
35T
Cable type (abbreviation)
Conductor cross section
AWG signal line
0.14 mm²
26
Conductor structure, signal line
Core diameter including insulation
External cable diameter
Wire colors
18x 0.10 mm
1 mm ±0.05 mm
8.50 mm
White-brown, green-yellow, gray-pink, blue-red, black-violet, gray/
pink-red/blue
External sheath, color
Conductor resistance
Overall twist
Black RAL 9005
142 Ω/km
Six pairs around the filler to the core
Shielding
Braided shielding made of tin-plated copper wires
Optical shield covering
Outer sheath, material
Material conductor insulation
Conductor material
85 %
PUR
PVC
Tin-plated Cu litz wires
