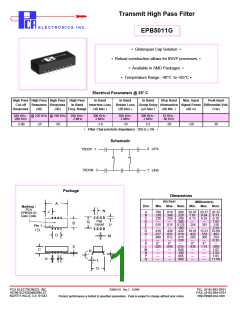

Transmit High Pass Filter
ELECTRONICS INC.
EPB5011G
• Globespan Cap Solution •
• Robust construction allows for IR/VP processes •
• Available in SMD Packages •
• Temperature Range -40°C to +85°C •
Electrical Parameters @ 25° C
High Pass High Pass
Cut-off
Response
Response
(dB)
260 KHz -
280 KHz
-3 dB
In Band
High Pass High Pass
Insertion Loss
Response
In Band
(dB Max.)
(dB)
Freq. Range
280 KHz -
2 MHz
300 KHz -
2 MHz
-1.0
In Band
Return Loss
(dB Max.)
300 KHz -
2 MHz
-16
In Band
Stop Band
Group Delay Attenuation
(µS Max.)
(dB Min..)
300 KHz -
2 MHz
8.5
10 KHz -
80 KHz
-50
+20
30
Peak Input
Max. Input
Signal Power Differential Volt.
(Vac)
(dB m)
@ 220 KHz @ 190 KHz
-25
-50
Filter Characteristic Impedance
: 200
± 5% •
Schematic
TXDOP 1
8 LIPA
TXDON 2
7 LINA
Package
Dimensions
Marking :
PCA
EPB5011G
Date Code
A
J
B
Q
N
Pad
Layout
(Inches)
Dim.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
Q
Min.
.790
.310
.230
---
.010
---
.410
.017
.008
---
.025
---
---
---
---
Max.
.810
.340
.250
---
.015
---
.430
.021
.012
---
.045
---
---
---
---
Nom.
.800
.320
.240
.300
.0125
.100
.420
.019
.010
.250
---
.035
.040
.100
.065
.460
(Millimeters)
Min.
Max. Nom.
20.07
7.87
8.13
---
.254
---
10.41
.432
.203
---
.635
---
---
---
---
20.57
8.64
6.35
---
.381
---
13.21
.533
.305
---
1.14
---
---
---
---
20.32
8.13
6.10
7.62
.318
2.54
10.69
.483
.254
6.35
---
.889
1.02
2.54
1.65
11.68
Pin 1
I.D.
D
P
M
C
H
F
E
K
L
G
I
PCA ELECTRONICS, INC.
16799 SCHOENBORN ST.
NORTH HILLS, CA 91343
CSB5011G Rev. 2 5/10/99
Product performance is limited to specified parameters. Data is subject to change without prior notice.
TEL: (818) 892-0761
FAX: (818) 894-5791
http://www.pca.com
