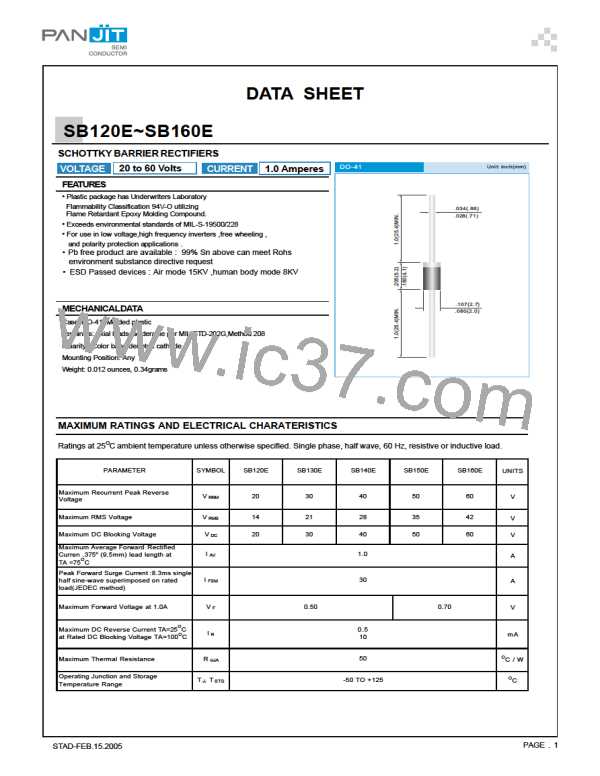

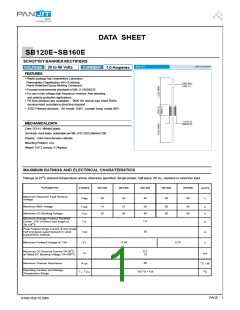

DATA SHEET
SB120E~SB160E
SCHOTTKY BARRIER RECTIFIERS
VOLTAGE
FEATURES
• Plastic package has Underwriters Laboratory
1.0(25.4)MIN.
20 to 60 Volts
CURRENT
1.0 Amperes
DO-41
Unit: inch(mm)
Flammability Classification 94V-O utilizing
Flame Retardant Epoxy Molding Compound.
• Exceeds environmental standards of MIL-S-19500/228
• For use in low voltage,high frequency inverters ,free wheeling ,
and polarity protection applications .
.034(.86)
.028(.71)
.205(5.2)
.160(4.1)
• Pb free product are available : 99% Sn above can meet Rohs
environment substance directive request
ESD Passed devices : Air mode 15KV ,human body mode 8KV
.
1.0(25.4)MIN.
MECHANICALDATA
Case: DO-41 Molded plastic
Terminals: Axial leads, solderable per MIL-STD-202G,Method 208
Polarity: Color band denotes cathode
Mounting Position: Any
Weight: 0.012 ounces, 0.34grams
.107(2.7)
.080(2.0)
MAXIMUM RATINGS AND ELECTRICAL CHARATERISTICS
Ratings at 25
O
C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
PARAMETER
SYMBOL
SB120E
SB130E
SB140E
SB150E
SB160E
UNITS
Maximum Recurrent Peak Reverse
Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified
Curren .375" (9.5mm) lead length at
O
TA =75 C
Peak Forward Surge Current :8.3ms single
half sine-wave superimposed on rated
load(JEDEC method)
Maximum Forward Voltage at 1.0A
O
V
RRM
V
RMS
V
DC
I
AV
20
14
20
30
21
30
40
28
40
1.0
50
35
50
60
42
60
V
V
V
A
I
FSM
30
A
V
F
0.50
0.70
V
Maximum DC Reverse Current TA=25 C
O
at Rated DC Blocking Voltage TA=100 C
I
R
0.5
10
O
mA
Maximum Thermal Resistance
Operating Junction and Storage
Temperature Range
R
ΘJA
T
J
, T
STG
50
C/W
O
-50 TO +125
C
STAD-FEB.15.2005
PAGE . 1
