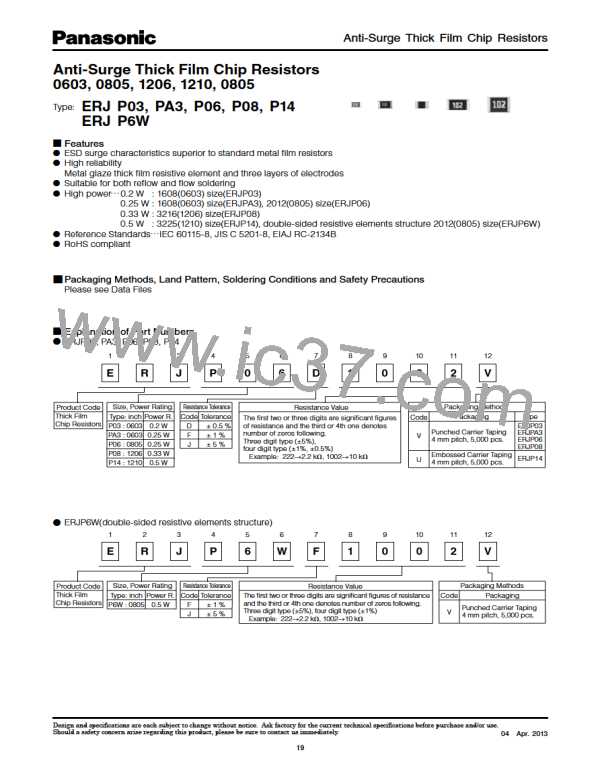

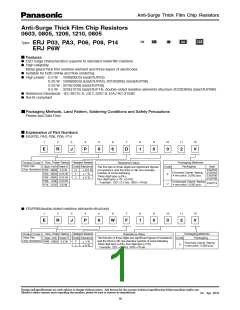

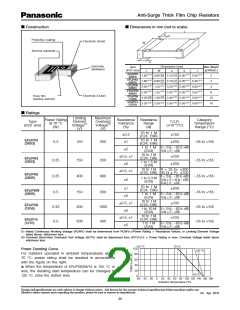

Anti-Surge Thick Film Chip Resistors
Anti-Surge Thick Film Chip Resistors
0603, 0805, 1206, 1210, 0805
Type:
ERJ P03, PA3, P06, P08, P14
ERJ P6W
Features

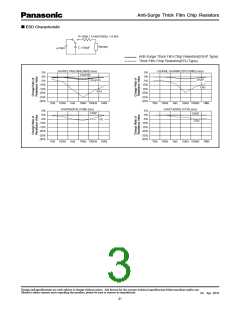

ESD surge characteristics superior to standard metal film resistors
High reliability
Metal glaze thick film resistive element and three layers of electrodes
Suitable for both reflow and flow soldering
High power… 0.2 W : 1608(0603) size(ERJP03)
0.25 W : 1608(0603) size(ERJPA3), 2012(0805) size(ERJP06)
0.33 W : 3216(1206) size(ERJP08)
0.5 W : 3225(1210) size(ERJP14), double-sided resistive elements structure 2012(0805) size(ERJP6W)
Reference Standards…IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
RoHS compliant
Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions
Please see Data Files
Explanation of Part Numbers
ERJP03, PA3, P06, P08, P14
1
2
3
4
5
6
7
8
9
10
11
12
Product Code
Thick Film
Chip Resistors
Size, Power Rating
Type: inch Power R.
P03 : 0603 0.2 W
PA3 : 0603 0.25 W
P06 : 0805 0.25 W
P08 : 1206 0.33 W
P14 : 1210 0.5 W
Resistance Tolerance
Code Tolerance
D
± 0.5 %
F
±1%
J
±5%
Resistance Value
The first two or three digits are significant figures
of resistance and the third or 4th one denotes
number of zeros following.
Three digit type (±5%),
four digit type (±1%, ±0.5%)
Example: 222 2.2 k , 1002 10 k
Code
V
Packaging Methods
Packaging
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
Type
ERJP03
ERJPA3
ERJP06
ERJP08
U
Embossed Carrier Taping
ERJP14
4 mm pitch, 5,000 pcs.
ERJP6W(double-sided resistive elements structure)
1
2
3
4
5
6
7
8
9
10
11
12
Resistance Tolerance
Size, Power Rating
Product Code
Thick Film
Type: inch Power R. Code Tolerance
Chip Resistors P6W : 0805 0.5 W
F
±1%
J
±5%
Resistance Value
The first two or three digits are significant figures of resistance
and the third or 4th one denotes number of zeros following.
Three digit type (±5%), four digit type (±1%)
Example: 222 2.2 k , 1002 10 k
Packaging Methods
Code
V
Packaging
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04
Apr. 2013
