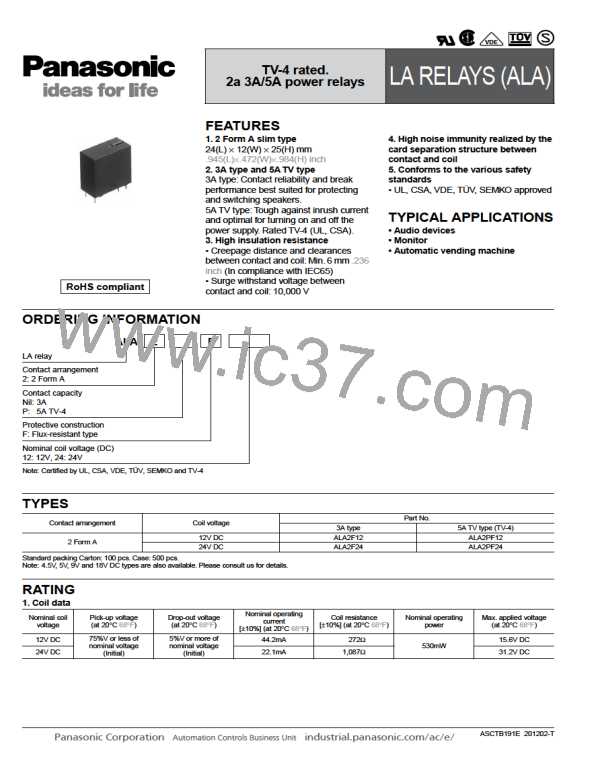

LA (ALA)

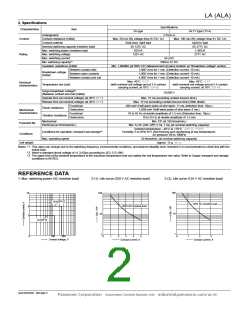

2. Specifications
Specifications
2 Form A
Characteristics
Item
3A type
5A TV type (TV-4)
Arrangement
Contact resistance (Initial)
Contact
Rating
Max. 50 m(By voltage drop 6V DC 1A)
Max. 100 m(By voltage drop 6V DC 1A)
Contact material
Gold-clad, AgNi type
3A 125V AC
625VA
AgSnO2 type
5A 277V AC
1,385VA
Nominal switching capacity (resistive load)
Max. switching power (resistive load)
Max. switching voltage
125V AC
277V AC
Max. switching current
5A (AC)
Min. switching capacity*1
Insulation resistance (Initial)
Between contact sets
100mA 5V DC
Min. 1,000M(at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,000 Vrms for 1 min. (Detection current: 10 mA)
Breakdown voltage
Between open contacts
(Initial)
1,000 Vrms for 1 min. (Detection current: 10 mA)
Between contact and coil
4,000 Vrms for 1 min. (Detection current: 10 mA)
Max. 45°C 113°F
(with nominal coil voltage and at 3 A contact
carrying current, at 70°C 158°F)
Max. 45°C 113°F
(with nominal coil voltage and at 5 A contact
carrying current, at 70°C 158°F)
Electrical
characteristics
Temperature rise (coil)
Surge breakdown voltage*2
(Between contact and coil) (Initial)
10,000 V
Operate time (at nominal voltage) (at 20°C 68°F)
Release time (at nominal voltage) (at 20°C 68°F)
Max. 15 ms (excluding contact bounce time.)
Max. 15 ms (excluding contact bounce time) (With diode)
200 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10µs.)
1,000 m/s2 (Half-wave pulse of sine wave: 6 ms.)
Functional
Shock resistance
Destructive
Mechanical
characteristics
Functional
Vibration resistance
Destructive
10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 1.5 mm
Mechanical
Min. 106 (at 180 times/min.)
Min. 5×104 (ON: OFF=1.5s: 1.5s) (at nominal switching capacity)
Expected life
Electrical (at 20 times/min.)
Ambient temperature: –40°C to +70°C –40°F to +158°F,
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature),
Air pressure: 86 to 106kPa
Conditions for operation, transport and storage*3
Max. operating speed
Conditions
Unit weight
20 times/min. (at nominal switching capacity)
Approx. 13 g .46 oz
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. Wave is standard shock voltage of 1.2×50µs according to JEC-212-1981
*3. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
REFERENCE DATA
1. Max. switching power (AC resistive load)
2-(1). Life curve (250 V AC resistive load)
2-(2). Life curve (125 V AC resistive load)
100
100
10
ALA2PF12
125V AC resistive load
250V AC resistive load
5
10
10
3
ALA2F12
1
1
0
100
300
0
1
2
3
4
5
0
1
2
3
Contact voltage, V
Contact current, A
Contact current, A
ASCTB191E 201202-T
Panasonic Corporation Automation Controls Business Unit industrial.panasonic.com/ac/e/
