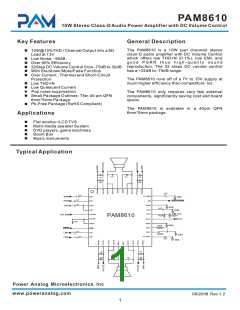

PAM8610
10W Stereo Class-D Audio Power Amplifier with DC Volume Control
Absolute Maximum Ratings
These are stress ratings only and functional operation is not implied. Exposure to absolute
maximum ratings for prolonged time periods may affect device reliability. All voltages are with
respect to ground.
Supply Voltage VDD.........................-0.3V to16.5V
Input Voltage Range VI:
Junction Temperature Range,TJ......-40°C to 125°C
Storage Temperature.....................-65°C to150°C
Lead Temperature1,6mm(1/16 inch) from case for
5 seconds.................................................260°C
MUTE,VREF,VOLUME,FADE................0V to 6.0V
SD....................................................-0.3V to VDD
RINN,RINP,LINN,LINP......................-0.3V to 6.0V
Recommended Operating Conditions
Supply Voltage (VDD)............................7V to 15V
Maximum Volume Control Pins, Input Pins
Voltage................................................0V to 5.0V
High Level Input Voltage: SD.................2.0V to VDD
MUTE, FADE...2.0V to 5V
Low Level Input Voltage: SD...................0 to 0.3V
MUTE, FADE.....0 to 0.3V
Ambient Operating Temperature......-20°C to 85°C
Thermal Information
Parameter
Package
Symbol
Maximum
Unit
Thermal Resistance
(Junction to Case)
Thermal Resistance
(Junction to Ambient)
QFN 6mm*6mm
θJC
7.6
°C/W
QFN 6mm*6mm
θJA
18.1
The Exposed PAD must be soldered to a thermal land on the PCB.
