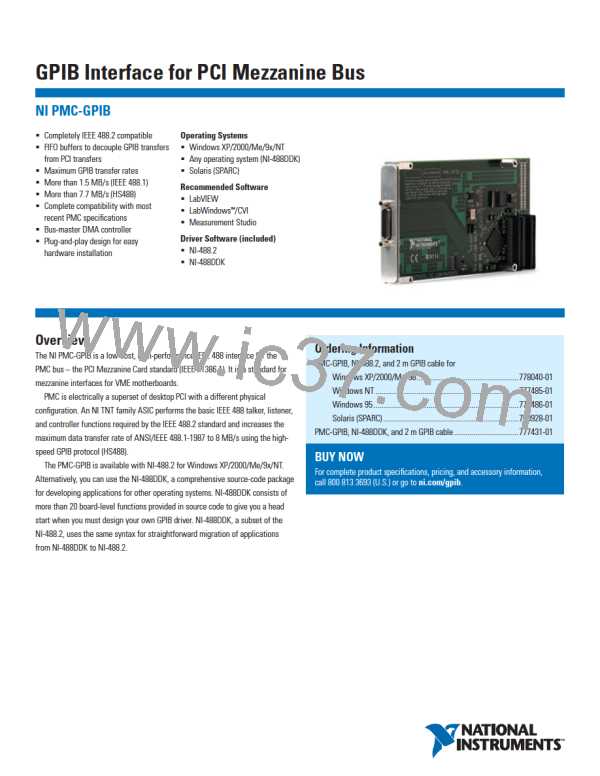

GPIB Interface for PCI Mezzanine Bus
Specifications
IEEE 488 Compatibility
IEEE 488.1 and IEEE 488.2 compatible
Power Consumption
Typical ...................................................
Theoretical maximum............................
100 mA @ 5 V = 500 mW,
3 mA @ V
io
≤ 15 mW
129 mA @ 5 V = 645 mW,
10 mA @ V
io
≤ 50 mW
Maximum IEEE 488 Bus Transfer Rate
IEEE 488 interlocked handshake ...........
IEEE 488 noninterlocked
(HS488) handshake ...........................
7.7 MB/s
(Actual rates depend on
system configuration and
instrument capabilities.)
1.5 MB/s
Performance
GPIB
HS488 ...............................................
3-wire................................................
7.7 MB/s
1.5 MB/s
Environment
Operating
Ambient temperature .......................
Relative humidity ..............................
Storage
Ambient temperature .......................
-20 to 70 °C
5 to 95%, noncondensing
Relative humidity ..............................
0 to 55 °C
10 to 90%, noncondensing
Power Requirement
+5 VDC...................................................
600 mA typical
Physical
Dimensions
PMC ..................................................
Connector
GPIB ..................................................
PMC ..................................................
Micro D-Sub 25-pin
32-bit, Universal Signaling
7.4 by 14.9 cm (2.9 by 5.9 in.)
Compliance
Refer to the Declaration of Conformity (DoC) for this product for any additional
regulatory compliance information. To obtain the DoC for this product, click
Declarations of Conformity Information at
ni.com/certification.
Signaling
PMC VIO ................................................
GPIB ......................................................
3.3 V/5 V (Universal), 33 MHz
HS488, 3-wire
