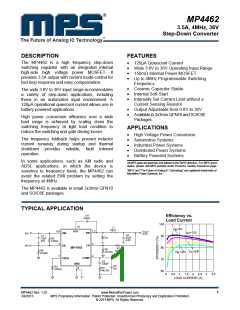

MP4462图片预览
型号: MP4462
PDF下载: 下载PDF文件 查看货源
内容描述: 3.5A , 4MHz时, 36V降压型转换器 [3.5A, 4MHz, 36V Step-Down Converter]
分类和应用: 转换器
文件页数/大小: 20 页 / 482 K
品牌: MPS [ MONOLITHIC POWER SYSTEMS ]
 浏览型号MP4462的Datasheet PDF文件第1页浏览型号MP4462的Datasheet PDF文件第3页浏览型号MP4462的Datasheet PDF文件第4页浏览型号MP4462的Datasheet PDF文件第5页浏览型号MP4462的Datasheet PDF文件第6页浏览型号MP4462的Datasheet PDF文件第7页浏览型号MP4462的Datasheet PDF文件第8页浏览型号MP4462的Datasheet PDF文件第9页
MP4462 – 3.5A, 4MHz, 36V STEP-DOWN CONVERTER
ORDERING INFORMATION
Part Number
Package
Top Marking
MP4462DQ*
3x3mm QFN10
SOIC8E
Z2
MP4462DN**
MP4462DN
* For Tape & Reel, add suffix –Z (e.g. MP4462DQ–Z);
For RoHS, compliant packaging, add suffix –LF (e.g. MP MP4462DQ–LF–Z).
** For Tape & Reel, add suffix –Z (e.g. MP4462DN–Z);
For RoHS, compliant packaging, add suffix –LF (e.g. MP MP4462DN–LF–Z).
PACKAGE REFERENCE
TOP VIEW
TOP VIEW
SW
SW
1
2
3
4
5
10 BST
9
8
7
6
VIN
SW
EN
1
2
3
4
8
7
6
5
BST
EN
VIN
VIN
COMP
FB
FREQ
GND
COMP
FB
FREQ
GND
EXPOSED PAD
ON BACKSIDE
QFN10
SOIC8E
ABSOLUTE MAXIMUM RATINGS (1)
Supply Voltage (VIN).....................–0.3V to +40V
Switch Voltage (VSW)............ –0.3V to VIN + 0.3V
BST to SW.....................................–0.3V to +6V
All Other Pins.................................–0.3V to +6V
Thermal Resistance (4)
3x3mm QFN10 .......................50...... 12... °C/W
SOIC8E ..................................50...... 10... °C/W
θJA
θJC
Notes:
1) Exceeding these ratings may damage the device.
2) The maximum allowable power dissipation is a function of the
maximum junction temperature TJ (MAX), the junction-to-
ambient thermal resistance θJA, and the ambient temperature
TA. The maximum allowable continuous power dissipation at
any ambient temperature is calculated by PD (MAX) = (TJ
(MAX)-TA)/θJA. Exceeding the maximum allowable power
dissipation will cause excessive die temperature, and the
regulator will go into thermal shutdown. Internal thermal
shutdown circuitry protects the device from permanent
damage.
(2)
Continuous Power Dissipation (TA = +25°C)
3x3mm QFN10 .......................................... 2.5W
SOIC8E...................................................... 2.5W
Junction Temperature...............................150°C
Lead Temperature ....................................260°C
Storage Temperature.............. –65°C to +150°C
Recommended Operating Conditions (3)
Supply Voltage VIN ...........................3.8V to 36V
Output Voltage VOUT.........................0.8V to 30V
Operating Junct. Temp. .......... –40°C to +125°C
3) The device is not guaranteed to function outside of its
operating conditions.
4) Measured on JESD51-7, 4-layer PCB.
MP4462 Rev. 1.02
3/4/2013
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2013 MPS. All Rights Reserved.
