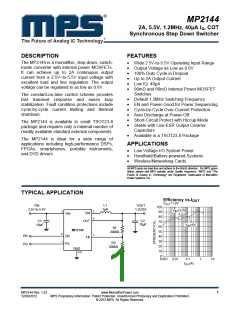

MP2144图片预览
型号: MP2144
PDF下载: 下载PDF文件 查看货源
内容描述: 2A , 5.5V , 1.2MHz的, 40A的智商, COT同步降压切换器 [2A, 5.5V, 1.2MHz, 40A IQ, COT Synchronous Step Down Switcher]
分类和应用:
文件页数/大小: 14 页 / 363 K
品牌: MPS [ MONOLITHIC POWER SYSTEMS ]
 浏览型号MP2144的Datasheet PDF文件第1页浏览型号MP2144的Datasheet PDF文件第3页浏览型号MP2144的Datasheet PDF文件第4页浏览型号MP2144的Datasheet PDF文件第5页浏览型号MP2144的Datasheet PDF文件第6页浏览型号MP2144的Datasheet PDF文件第7页浏览型号MP2144的Datasheet PDF文件第8页浏览型号MP2144的Datasheet PDF文件第9页
MP2144 – 2A, 5.5V, 1.2MHz. 40μA IQ, SYNCHRONOUS STEP-DOWN SWITCHER
ORDERING INFORMATION
Part Number*
Package
Top Marking
MP2144GJ
TSOT23-8
ADL
* For Tape & Reel, add suffix –Z (e.g. MP2144GJ–Z);
PACKAGE REFERENCE
TOP VIEW
1
2
3
4
8
7
6
5
EN
PG
VIN
FB
AGND
OUT
SW
PGND
SOT23-8
ABSOLUTE MAXIMUM RATINGS (1)
Supply Voltage VIN ......................................... 6V
Thermal Resistance (4)
TSOT23-8..............................100..... 55... °C/W
θJA
θJC
V
SW........................ (-3V for < 5ns) to (VIN+0.3V)
Notes:
1) Exceeding these ratings may damage the device.
2) The maximum allowable power dissipation is a function of the
maximum junction temperature TJ (MAX), the junction-to-
ambient thermal resistance θJA, and the ambient temperature
TA. The maximum allowable continuous power dissipation at
any ambient temperature is calculated by PD (MAX) = (TJ
(MAX)-TA)/θJA. Exceeding the maximum allowable power
dissipation will cause excessive die temperature, and the
regulator will go into thermal shutdown. Internal thermal
shutdown circuitry protects the device from permanent
damage.
All Other Pins.................................-0.3V to +6 V
Junction Temperature...............................150°C
Lead Temperature ....................................260°C
(2)
Continuous Power Dissipation (TA = 25°C)
……….….. ............................................... 1.25W
Storage Temperature............... -65°C to +150°C
Recommended Operating Conditions (3)
Supply Voltage VIN ..........................2.5V to 5.5V
Output Voltage VOUT.................0.6V to VIN -0.5V
Operating Junction Temp. (TJ). -40°C to +125°C
3) The device is not guaranteed to function outside of its
operating conditions.
4) Measured on JESD51-7, 4-layer PCB.
MP2144 Rev. 1.03
12/20/2012
www.MonolithicPower.com
MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
© 2012 MPS. All Rights Reserved.
