Order this document by MC12066/D
The MC12066 is a selectable divide by 64/256 prescaler. Typical
frequency synthesis applications include electronically tuned TV/CATV and
communication systems as well as instrumentation.
MECL PLL COMPONENTS
The MC12066 is pin and functionally compatible to the Plessey SP4666,
but with significantly lower power consumption.
An internal, two stage preamplifier is included which isolates the
differential inputs and provides gain for the input signal. Differential outputs
are provided.
÷64/256 PRESCALER
The MC12066 contains an internal low pass filter to reduce harmonic
content to a low level. The filter bandwidth is selectable depending on the
state of the SEL pin. The typical –3.0 dB bandwidth is 4.3 MHz for ÷256

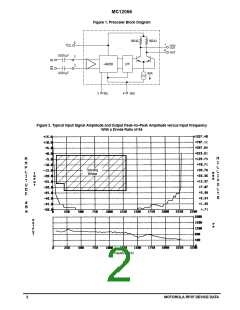

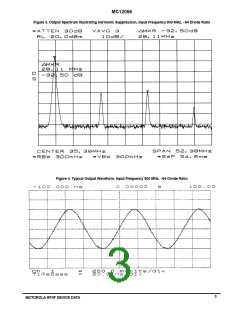

mode, and 17.2 MHz for ÷64 mode. Figures 2 and 3 illustrate typical device
performance.
SEMICONDUCTOR
TECHNICAL DATA
1.3 GHz Toggle Frequency
Operating Supply Voltage of 2.7 to 5.5 V
Low–Power 7.5 mA Typical at V
= 5.0 V
CC
8
High Input Sensitivity, 5 mVrms Max at V
= 2.7 to 5.5,
CC
T = –40 to 85°C
1
A
600 mV Minimum Peak–to–Peak Output Swing
Differential Outputs
D SUFFIX
PLASTIC PACKAGE
CASE 751
TRUTH TABLE
SEL
Prescaler
(SO–8)
L
H
256
64
MAXIMUM RATINGS
PIN CONNECTIONS
Characteristic
Power Supply Voltage
Symbol
Range
7.0
Unit
Vdc
°C
V
CC
Operating Temperature Range
Storage Temperature Range
T
A
–40 to 85
–65 to 175
1
2
3
4
8
7
6
5
V
NC
IN
CC
T
stg
°C
OUT
OUT
NOTE: ESD data available upon request.
IN
SEL
Gnd
ELECTRICAL CHARACTERISTICS (V
= 2.7 to 5.5 V;
(Top View)
CC
T
A
= –40 to 85°C, unless otherwise noted.)
1
Typ
Characteristic
Symbol
Min
Max
Unit
2
Toggle Frequency
(Sine Wave Input)
f
1.3
1.6
50
GHz
MHz
max
f
min
Supply Current at 5.5 V
I
7.5
1.0
12
mA
CC
Output Voltage
(Load =12 pF)
V
0.6
V
pp
out
Input Voltage Sensitivity
50–200 MHz
V
in min
mVrms
2.5
0.5
10
5
200–1300 MHz
ORDERING INFORMATION
Operating
Input Overload
V
200
400
mVrms
in max
Temperature Range
Device
Package
0.7V
CC
Input HIGH Voltage (SEL)
Input LOW Voltage (SEL)
V
IH
V
V
MC12066D
T
A
= –40° to +85°C
SO–8
0.3V
CC
V
IL
NOTES: 1. Typical measured at 25°C, 5.0 V
2. See Figure 2
Motorola, Inc. 1997
Rev 2
