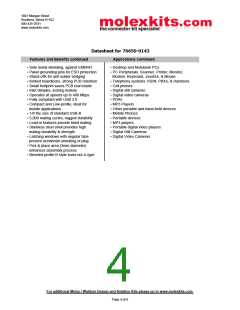

Datasheet for 76650-0143
Applications continued
Features and Benefits continued
• Side metal shielding, against EMI/RFI
• Desktop and Notebook PCs
• Panel grounding pins for ESD protection
• Stand-offs for anti-solder bridging
• Kinked boardlocks, strong PCB retention
• Small footprint saves PCB real estate
• Inlet dimples, locking feature
• PC Peripherals: Scanner, Printer, Monitor,
Modem, Keyboard, Joystick, & Mouse
• Telephony systems: ISDN, PBXs, & Handsets
• Cell phones
• Digital still cameras
• Operates at speeds up to 480 Mbps
• Fully compliant with USB 2.0
• Digital video cameras
• PDAs
• Compact and Low-profile, ideal for
mobile applications
• MP3 Players
• Other portable and hand-held devices
• Mobile Phones
• Portable devices
• MP3 players
• 1/8 the size of standard USB-B
• 5,000 mating cycles, rugged durability
• Lead-in features provide blind mating
• Stainless steel shell provides high
mating durability & strength
• Portable digital video players
• Digital Still Cameras
• Latching windows with angular tabs
prevent accidental unmating of plug
• Pick & place area (3mm diameter)
enhances assembly process
• Digital Video Cameras
• Beveled profile B style locks out A-type
