1801 Morgan Street
Rockford, Illinois 61102
800-435-2931
www.molexkits.com

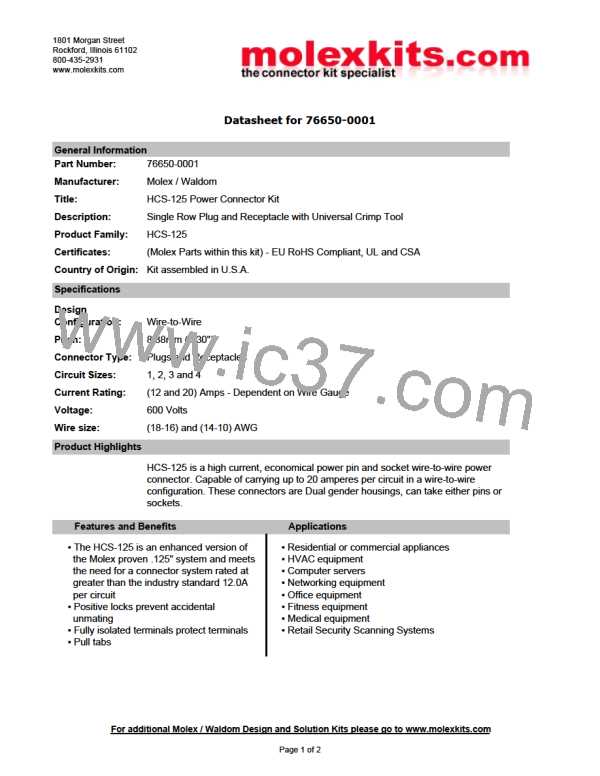

Datasheet for 76650-0001
General Information
Part Number:
76650-0001
Manufacturer:
Title:
Description:
Product Family:
Certificates:
Molex / Waldom
HCS-125 Power Connector Kit
Single Row Plug and Receptacle with Universal Crimp Tool
HCS-125
(Molex Parts within this kit) - EU RoHS Compliant, UL and CSA
Country of Origin:
Kit assembled in U.S.A.
Specifications
Design
Configuration:
Pitch:
Connector Type:
Circuit Sizes:
Current Rating:
Voltage:
Wire size:
Product Highlights
HCS-125 is a high current, economical power pin and socket wire-to-wire power
connector. Capable of carrying up to 20 amperes per circuit in a wire-to-wire
configuration. These connectors are Dual gender housings, can take either pins or
sockets.
Features and Benefits
• The HCS-125 is an enhanced version of
the Molex proven .125" system and meets
the need for a connector system rated at
greater than the industry standard 12.0A
per circuit
• Positive locks prevent accidental
unmating
• Fully isolated terminals protect terminals
• Pull tabs
Applications
• Residential or commercial appliances
• HVAC equipment
• Computer servers
• Networking equipment
• Office equipment
• Fitness equipment
• Medical equipment
• Retail Security Scanning Systems
Wire-to-Wire
8.38mm (.330")
Plugs and Receptacles
1, 2, 3 and 4
(12 and 20) Amps - Dependent on Wire Gauge
600 Volts
(18-16) and (14-10) AWG
For additional Molex / Waldom Design and Solution Kits please go to www.molexkits.com
Page 1 of 2
