This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
0039532085
Active
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
China RoHS
Overview:
Description:
1.25mm (.049") Pitch FFC/FPC Connector, Through-Hole, Vertical, ZIF, 8 Circuits,
Lead-free
Not Reviewed
Halogen-Free
Agency Certification
UL
Status
Not Reviewed
E29179
Need more information on product
environmental compliance?
General
Product Family
Series
Overview
Product Name
FFC/FPC Connectors
5597
ffc_fpc_throughhole
N/A
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Circuits (Loaded)
8
Color - Resin
Contact Position
Natural
N/A
Durability (mating cycles max)
Entry Angle
Flammability
30
Vertical
94V-0
Search Parts in this Series
5597Series
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
0.295 In
7.50 mm
Phosphor Bronze
Tin-Bismuth
Tin-Bismuth
Polyester
1
Number of Rows
Orientation
Vertical
0.138 In
3.50 mm
No
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
None
Packaging Type
Tray
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
0.049 In
1.25 mm
40
1
40
1
No
Stackable
No
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
No
-20°C to +80°C
Through Hole
FFC/FPC
Electrical
Current - Maximum per Contact
Voltage - Maximum
1A
200V
Material Info
Old Part Number
5597-08CPB7F
SPK-5597-001

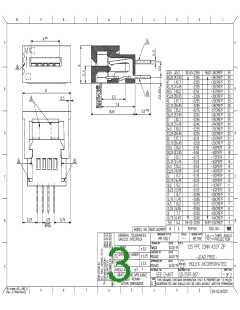

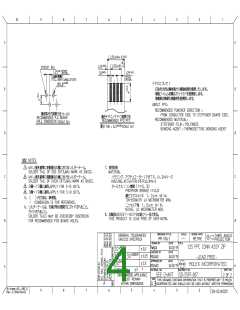

Reference - Drawing Numbers
Packaging Specification
