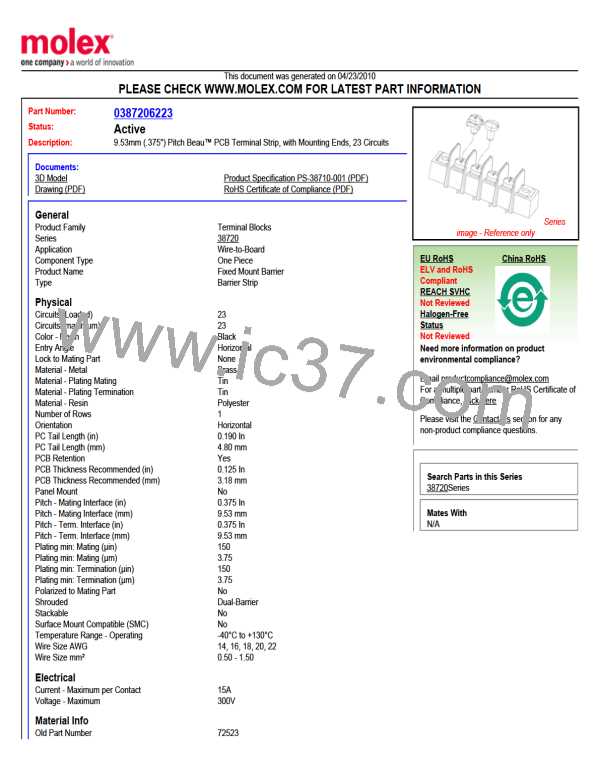

This document was generated on 04/23/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
Active

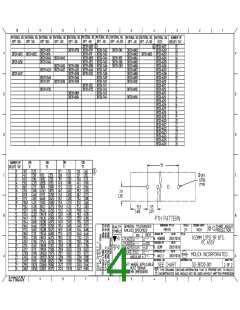

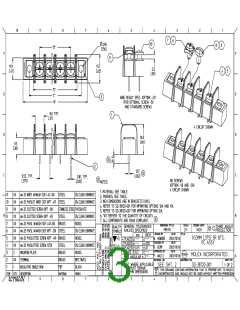

9.53mm (.375") Pitch Beau™ PCB Terminal Strip, with Mounting Ends, 23 Circuits
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
Wire-to-Board
One Piece
Fixed Mount Barrier
Barrier Strip
image - Reference only
Series
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
23
23
Black
Horizontal
None
Brass
Tin
Tin
Polyester
1
Horizontal
0.190 In
4.80 mm
Yes
0.125 In
3.18 mm
No
0.375 In
9.53 mm
0.375 In
9.53 mm
150
3.75
150
3.75
No
Dual-Barrier
No
No
-40°C to +130°C
14, 16, 18, 20, 22
0.50 - 1.50
ELV and RoHS
Compliant
Not Reviewed
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
Mates With
N/A
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Old Part Number
72523
