型号: 0555600507
PDF下载: 下载PDF文件 查看货源
内容描述: 0.50毫米( 0.020 “ )间距SlimStack ™插件,表面贴装,双排,垂直, 1.50毫米( .059 ” )堆叠高度, 50电路 [0.50mm (.020") Pitch SlimStack™ Plug, Surface Mount, Dual Row, Vertical, 1.50mm(.059") Stack Height, 50 Circuits]
分类和应用:
文件页数/大小: 5 页 / 233 K
品牌: MOLEX [ Molex ]

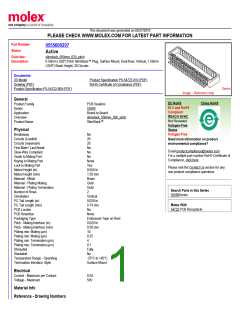

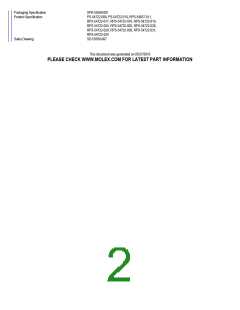

 浏览型号0555600507的Datasheet PDF文件第2页浏览型号0555600507的Datasheet PDF文件第3页浏览型号0555600507的Datasheet PDF文件第4页浏览型号0555600507的Datasheet PDF文件第5页
This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
0555600207
Active
slimstack_050mm_020_pitch
Overview:
Description:
0.50mm (.020") Pitch SlimStack™ Plug, Surface Mount, Dual Row, Vertical, 1.50mm
(.059") Stack Height, 20 Circuits
Documents:
3D Model

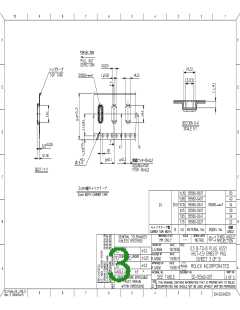

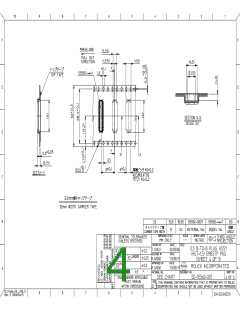

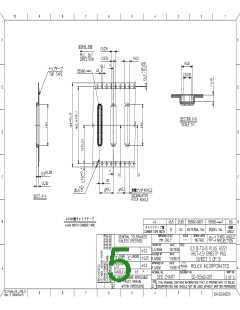

Drawing (PDF)
Product Specification PS-54722-010 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Product Specification PS-54722-009 (PDF)
image - Reference only
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
General
Product Family
Series
Application
Overview
EU RoHS
PCB Headers
55560
Board-to-Board
slimstack_050mm_020_pitch
SlimStack™
Product Name
Physical
Breakaway
Halogen-Free
No
Circuits (Loaded)
20
20
No
No
No
None
Yes
0.059 In
Need more information on product
environmental compliance?
Circuits (maximum)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Mated Height (mm)
Material - Metal
1.50 mm
Brass
Material - Plating Mating
Material - Plating Termination
Number of Rows
Gold
Gold
2
Search Parts in this Series
55560Series
Orientation
Vertical
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
0.029 In
0.74 mm
No
Mates With
54722 PCB Receptacle
PCB Retention
None
Packaging Type
Embossed Tape on Reel
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Shrouded
0.020 In
0.50 mm
10
0.25
4
0.1
Fully
Stackable
No
Temperature Range - Operating
Termination Interface: Style
-25°C to +85°C
Surface Mount
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V
Material Info
Reference - Drawing Numbers
