0446200003 参数 Datasheet PDF下载

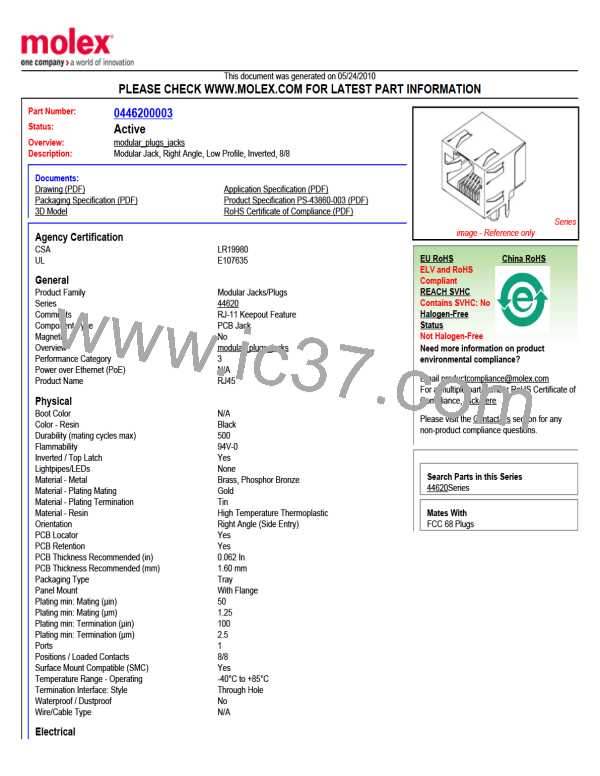

0446200003图片预览
型号: 0446200003
PDF下载: 下载PDF文件 查看货源
内容描述: 模块化插座,直角,低调,倒, 8/8 [Modular Jack, Right Angle, Low Profile, Inverted, 8/8]
分类和应用: 插座
文件页数/大小: 6 页 / 538 K
品牌: MOLEX [ Molex ]

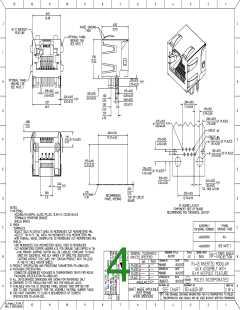

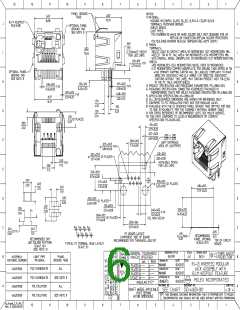

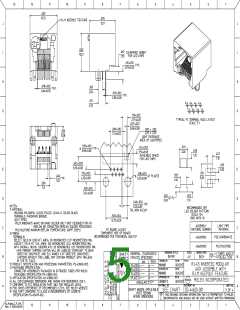

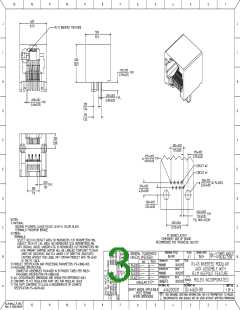

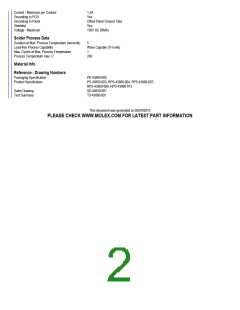

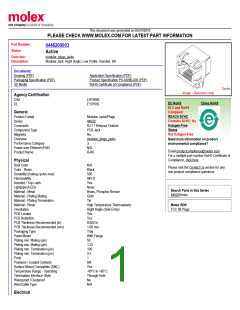

 浏览型号0446200003的Datasheet PDF文件第2页浏览型号0446200003的Datasheet PDF文件第3页浏览型号0446200003的Datasheet PDF文件第4页浏览型号0446200003的Datasheet PDF文件第5页浏览型号0446200003的Datasheet PDF文件第6页
This document was generated on 05/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
0446200003
Active
modular_plugs_jacks
Overview:
Description:
Modular Jack, Right Angle, Low Profile, Inverted, 8/8
Documents:
Drawing (PDF)
Application Specification (PDF)
Packaging Specification (PDF)
3D Model
Product Specification PS-43860-003 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
China RoHS
Agency Certification
CSA
UL
LR19980
E107635
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
General
Product Family
Series
Comments
Component Type
Magnetic
Modular Jacks/Plugs
44620
RJ-11 Keepout Feature
PCB Jack
Not Halogen-Free
No
Overview
modular_plugs_jacks
3
N/A
RJ45
Need more information on product
environmental compliance?
Performance Category
Power over Ethernet (PoE)
Product Name
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Physical
Boot Color
Color - Resin
Durability (mating cycles max)
Flammability
N/A
Black
500
94V-0
Please visit the Contact Us section for any
non-product compliance questions.
Inverted / Top Latch
Lightpipes/LEDs
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Yes
None
Search Parts in this Series
44620Series
Brass, Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
Mates With
Orientation
Right Angle (Side Entry)
FCC 68 Plugs
PCB Locator
Yes
PCB Retention
Yes
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
0.062 In
1.60 mm
Tray
Panel Mount
With Flange
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Ports
50
1.25
100
2.5
1
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire/Cable Type
8/8
Yes
-40°C to +85°C
Through Hole
No
N/A
Electrical
