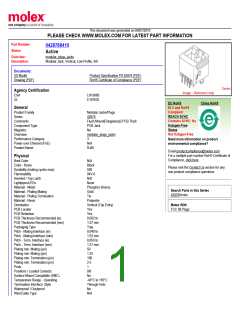

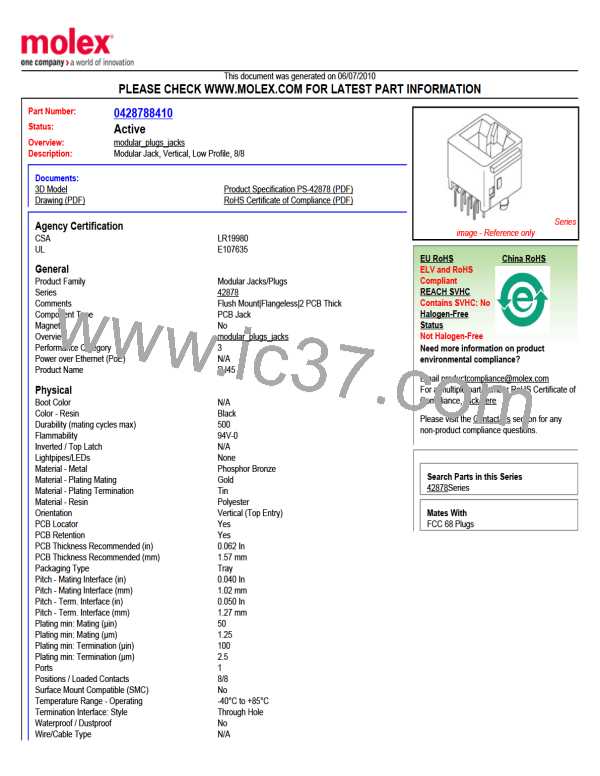

Part Number:
Status:
0428788410
Active
modular_plugs_jacks
Modular Jack, Vertical, Low Profile, 8/8
Overview:
Description:
Documents:
3D Model

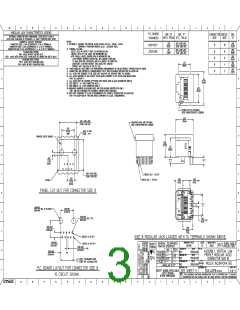

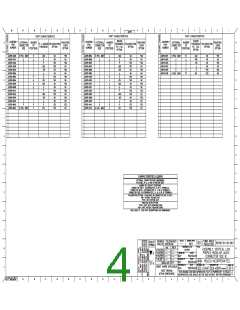

Drawing (PDF)
Product Specification PS-42878 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
image - Reference only
China RoHS
LR19980
E107635
EU RoHS
General
Product Family
Series
Comments
Component Type
Magnetic
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Modular Jacks/Plugs
42878
Flush Mount|Flangeless|2 PCB Thick
PCB Jack
No
Not Halogen-Free
Overview
modular_plugs_jacks
Performance Category
Power over Ethernet (PoE)
Product Name
3
Need more information on product
environmental compliance?
N/A
RJ45
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Physical
Boot Color
N/A
Color - Resin
Durability (mating cycles max)
Flammability
Black
500
94V-0
Please visit the Contact Us section for any
non-product compliance questions.
Inverted / Top Latch
N/A
Lightpipes/LEDs
None
Material - Metal
Phosphor Bronze
Gold
Tin
Polyester
Search Parts in this Series
42878Series
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
Vertical (Top Entry)
Mates With
PCB Locator
Yes
FCC 68 Plugs
PCB Retention
Yes
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
0.062 In
1.57 mm
Tray
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Ports
0.040 In
1.02 mm
0.050 In
1.27 mm
50
1.25
100
2.5
1
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire/Cable Type
8/8
No
-40°C to +85°C
Through Hole
No
N/A
MOLEX [ Molex ]
