内容描述:
4.20毫米( .165 “ )间距迷你小飞度™插头,双排,垂直,无管理单元塑料钉板锁 [4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Dual Row, Vertical, without Snap-in Plastic Peg PCB Lock]
文件大小:
503 K
文件页数:
6 Pages
品牌Logo:
品牌名称:
MOLEX [ Molex Electronics Ltd. ]

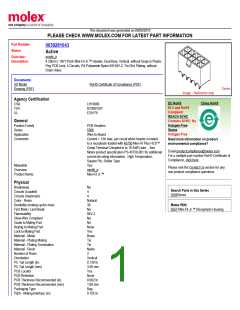

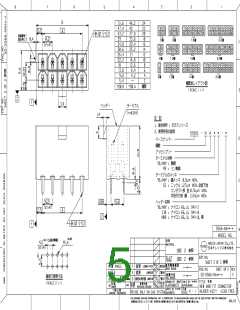

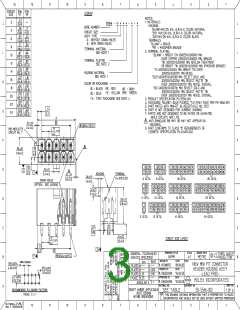

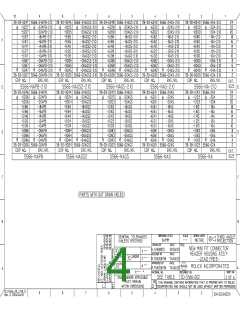

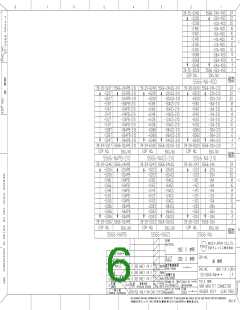

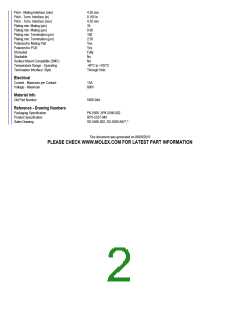

 浏览型号0039281043的Datasheet PDF文件第2页浏览型号0039281043的Datasheet PDF文件第3页浏览型号0039281043的Datasheet PDF文件第4页浏览型号0039281043的Datasheet PDF文件第5页浏览型号0039281043的Datasheet PDF文件第6页

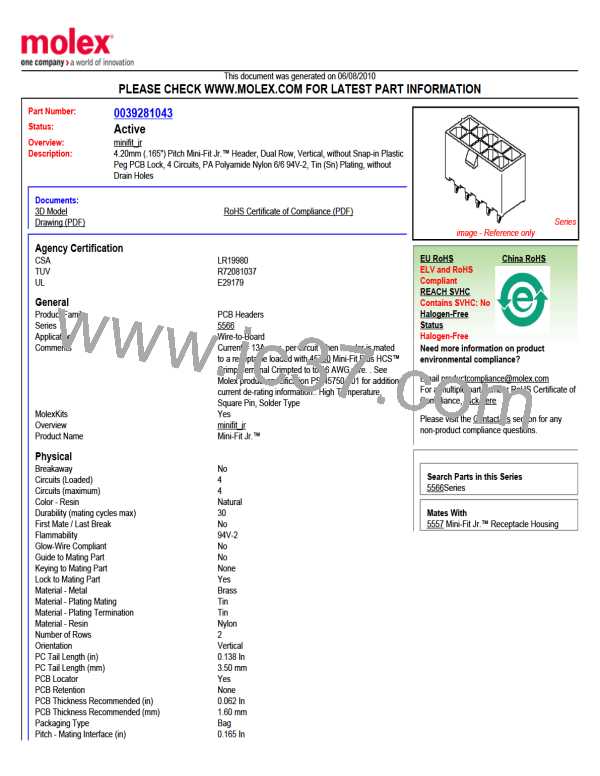

This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Active
4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Dual Row, Vertical, without Snap-in Plastic
Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, without
Drain Holes
Documents:
Series
image - Reference only
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
PCB Headers
Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS™
Crimp Terminal Crimpted to to 16 AWG wire. . See
Molex product specification PS-45750-001 for additional
current de-rating information.. High Temperature,
Square Pin, Solder Type
Yes
Mini-Fit Jr.™
MolexKits
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
No
4
4
Natural
30
No
94V-2
No
No
None
Yes
Brass
Tin
Tin
Nylon
2
Vertical
0.138 In
3.50 mm
Yes
None
0.062 In
1.60 mm
Bag
0.165 In
Search Parts in this Series
Mates With
