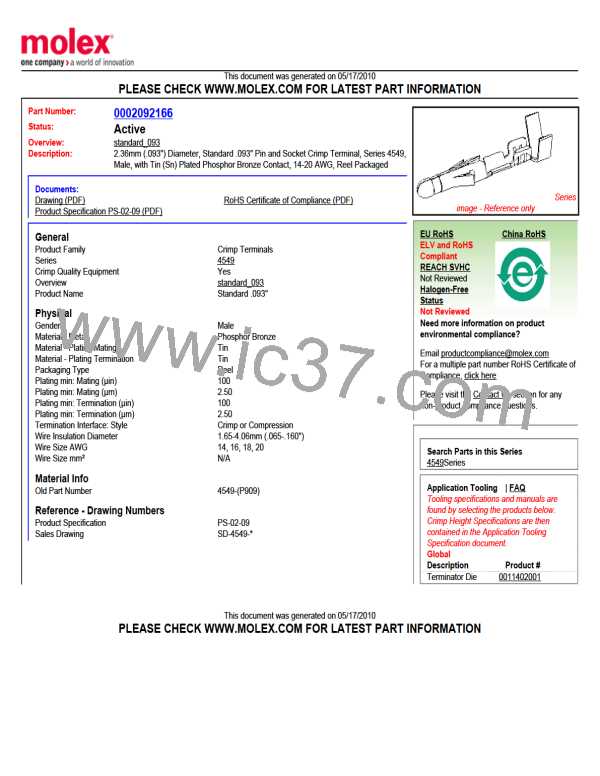

This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
0002092166
Active
standard_093
Overview:
Description:
2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 4549,
Male, with Tin (Sn) Plated Phosphor Bronze Contact, 14-20 AWG, Reel Packaged
Documents:

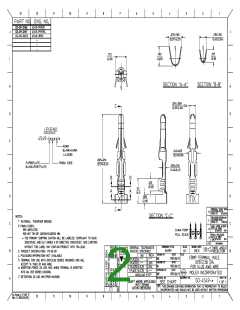

Drawing (PDF)
Product Specification PS-02-09 (PDF)
Series
RoHS Certificate of Compliance (PDF)
image - Reference only
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
EU RoHS
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
4549
Yes
standard_093
Standard .093"
Not Reviewed
Need more information on product
environmental compliance?
Physical
Gender
Male
Phosphor Bronze
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Tin
Tin
Reel
100
2.50
100
2.50
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Crimp or Compression
1.65-4.06mm (.065-.160")
14, 16, 18, 20
N/A
Search Parts in this Series
4549Series
Wire Size mm²
Material Info
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Old Part Number
4549-(P909)
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-02-09
SD-4549-*
Global
Description
Product #
Terminator Die
0011402001
