Up to 160 pixels can be controlled for LCD display. When the LCD
enable bit is set to “1” after data is set in the LCD mode register,
the segment output enable register and the LCD display RAM, the
LCD drive control circuit starts reading the display data automati-
cally, performs the bias control and the duty ratio control, and
displays the data on the LCD panel.
LCD DRIVE CONTROL CIRCUIT
The 3827 group has the built-in Liquid Crystal Display (LCD) drive
control circuit consisting of the following.

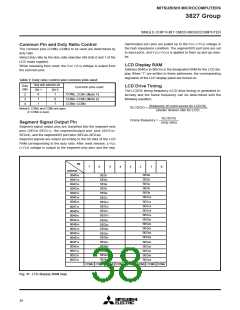

●LCD display RAM
●Segment output enable register
●LCD mode register
●Voltage multiplier
Table 7 Maximum number of display pixels at each duty ratio
●Selector
Duty ratio
2
Maximum number of display pixel
80 dots
●Timing controller
●Common driver
or 8 segment LCD 10 digits
120 dots
●Segment driver
●Bias control circuit
3
4
or 8 segment LCD 15 digits
160 dots
A maximum of 40 segment output pins and 4 common output pins
can be used.
or 8 segment LCD 20 digits
b7
b0
Segment output enable register
(SEG : address 003816)
Segment output enable bit 0
0 : Output ports P30–P35
1 : Segment output SEG18–SEG23
Segment output enable bit 1
0 : Output ports P36, P37
1 : Segment output SEG24,SEG25
Segment output enable bit 2
0 : I/O ports P00–P05
1 : Segment output SEG26–SEG31
Segment output enable bit 3
0 : I/O ports P06,P07
1 : Segment output SEG32,SEG33
Segment output enable bit 4
0 : I/O port P10
1 : Segment output SEG34
Segment output enable bit 5
0 : I/O ports P11–P15
1 : Segment output SEG35–SEG39
LCD output enable bit
0 : Disable
1 : Enable
Not used (return “0” when read)
(Do not write “1” to this bit)
b7
b0
LCD mode register
(LM : address 003916)

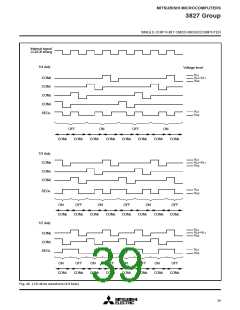

Duty ratio selection bits
0 0 : Not used
0 1 : 2 duty (use COM0, COM1)
1 0 : 3 duty (use COM0–COM2)
1 1 : 4 duty (use COM0–COM3)
Bias control bit
0 : 1/3 bias
1 : 1/2 bias
LCD enable bit
0 : LCD OFF
1 : LCD ON
Voltage multiplier control bit
0 : Voltage multiplier disabled
1 : Voltage multiplier enabled
LCD circuit divider division ratio selection bits
0 0 : 1 division of clock input
0 1 : 2 division of clock input
1 0 : 4 division of clock input
1 1 : 8 division of clock input
LCDCK count source selection bit (Note)
0 : f(XCIN)/32
1 : f(XIN)/8192 (f(XCIN)/8192 in low-speed mode)
Note : LCDCK is a clock for a LCD timing controller.
Fig. 38 Structure of LCD mode register
