Mitsubishi microcomputers
M16C / 62 Group
SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER
GZZ SH12 60B <82A0>
Mask ROM number

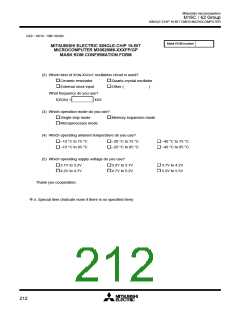

MITSUBISHI ELECTRIC SINGLE-CHIP 16-BIT
MICROCOMPUTER M30620MA-XXXFP/GP
MASK ROM CONFIRMATION FORM
(2) Which kind of XCIN-XCOUT oscillation circuit is used?
Ceramic resonator
External clock input
Quartz-crystal oscillator
Other (
)
What frequency do you use?
f(XCIN) =
kHZ
(3) Which operation mode do you use?
Single-chip mode
Memory expansion mode
Microprocessor mode
(4) Which operating ambient temperature do you use?
–10 °C to 75 °C
–10 °C to 85 °C
–20 °C to 75 °C
–20 °C to 85 °C
–40 °C to 75 °C
–40 °C to 85 °C
(5) Which operating supply voltage do you use?
2.7V to 3.2V
4.2V to 4.7V
3.2V to 3.7V
4.7V to 5.2V
3.7V to 4.2V
5.2V to 5.5V
Thank you cooperation.
4. Special item (Indicate none if there is no specified item)
215
