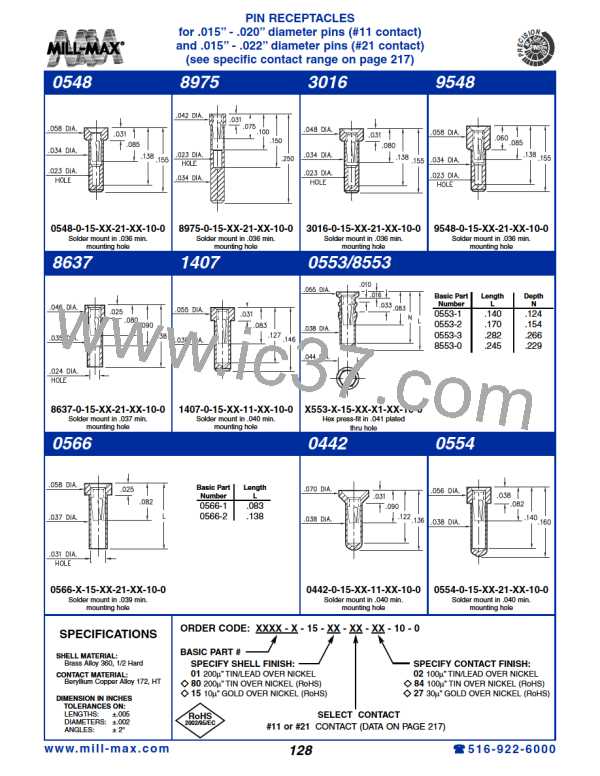

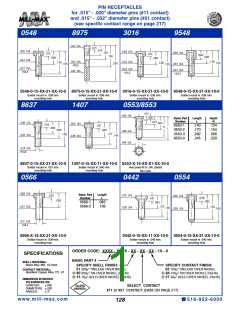

PIN RECEPTACLES
for .015” - .020” diameter pins (#11 contact)
and .015” - .022” diameter pins (#21 contact)
(see specific contact range on page 217)
PR
E
CI
M
ON
S
I
CHI
A
PINS
NE
D
0548
8975
3016
9548
0548-0-15-XX-21-XX-10-0
Solder mount in .036 min.
mounting hole
8975-0-15-XX-21-XX-10-0
Solder mount in .036 min.
mounting hole
3016-0-15-XX-21-XX-10-0
Solder mount in .036 min.
mounting hole
9548-0-15-XX-21-XX-10-0
Solder mount in .036 min.
mounting hole
8637
1407
0553/8553
Basic Part
Number
Length
L
Depth
N
0553-1
0553-2
0553-3
8553-0
.140
.170
.282
.245
.124
.154
.266
.229
8637-0-15-XX-21-XX-10-0
Solder mount in .037 min.
mounting hole
1407-0-15-XX-11-XX-10-0
Solder mount in .040 min.
mounting hole
X553-X-15-XX-X1-XX-10-0
Hex press-fit in .041 plated
thru hole
0566
Basic Part
Number
Length
L
0442
0554
0566-1
0566-2
.083
.138
0566-X-15-XX-21-XX-10-0
Solder mount in .039 min.
mounting hole
0442-0-15-XX-11-XX-10-0
Solder mount in .040 min.
mounting hole
0554-0-15-XX-21-XX-10-0
Solder mount in .040 min.
mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 15 - XX - XX - XX - 10 - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL (RoHS)
15
10μ” GOLD OVER NICKEL (RoHS)
2002/95/EC
SPECIFY CONTACT FINISH:
02
100μ” TIN/LEAD OVER NICKEL
84
100μ” TIN OVER NICKEL (RoHS)
27
30μ” GOLD OVER NICKEL (RoHS)
RoHS
SELECT CONTACT
#11 or #21
CONTACT (DATA ON PAGE 217)
w w w. m i l l - m a x . c o m
128
516-922-6000
