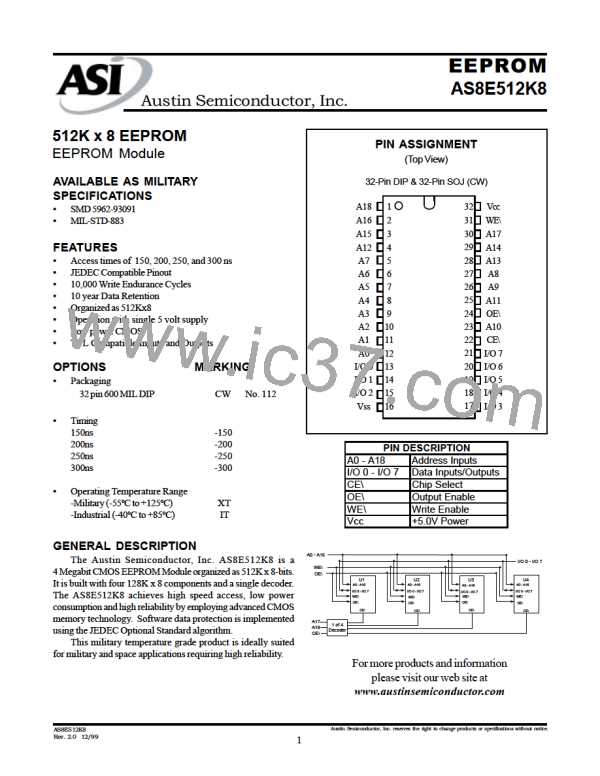

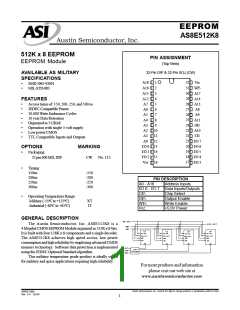

EEPROM
AS8E512K8
Austin Semiconductor, Inc.
TOGGLE BIT:

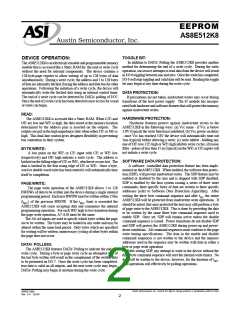

DEVICE OPERATION:
In addition to DATA\ Polling the AS8E512K8 provides another
method for determining the end of a write cycle. During the write
operation, successive attempts to read data from the device will result
in I/O 6 toggling between one and zero. Once the write has completed,
I/O 6 will stop toggling and valid data will be read. Reading the toggle
bit may begin at any time during the write cycle.
The AS8E512K8 is an electricaly erasable and programmable memory
module that is accessed like a Static RAM for the read or write cycle
without the need for external components. The device contains a
128-byte-page register to allow writing of up to 128 bytes of data
simultaneously. During a write cycle, the address and 1 to 128 bytes
of data are internally latched, freeing the address and data bus for other
operations. Following the initiation of a write cycle, the device will
automatically write the latched data using an internal control timer.
The end of a write cycle can be detected by DATA\ polling of I/O7.
Once the end of a write cycle has been detected a new access for a read
or write can begin.
DATA PROTECTION:
If precautions are not taken, inadvertent writes may occur during
transitions of the host power supply. The E2 module has incorpo-
rated both hardware and software features that will protect the memory
against inadvertent writes.

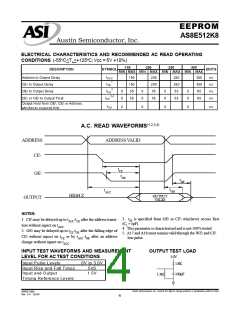

READ:
HARDWARE PROTECTION:
The AS8E512K8 is accessed like a Static RAM. When C/E\ and
OE\ are low and WE\ is high, the data stored at the memory location
Hardware features protect against inadvertent writes to the
determined by the address pins is asserted on the outputs. The AS8E512K8 in the following ways: (a) Vcc sense - if Vcc is below
outputs are put in the high impedance state when either CE\ or OE\ is 3.8V (typical) the write function is inhibited; (b) Vcc power-on delay
high. This dual-line control gives designers flexibility in preventing - once Vcc has reached 3.8V the device will automatically time out
bus contention in their system.
5ms (typical) before allowing a write; (c) write inhibit - holding any
one of OE\ low, CE\ high or WE\ high inhibits write cycles; (d) noise
filter - pulses of less than 15 ns (typical) on the WE\ or CE\ inputs will
not initiate a write cycle.

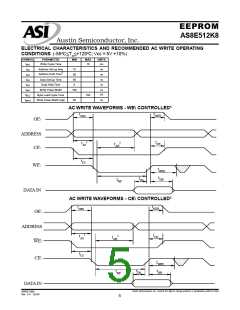

BYTEWRITE:
A low pulse on the WE\ or CE\ input with CE\ or WE\ low
(respectively) and OE\ high initiates a write cycle. The address is
latched on the falling edge of CE\ or WE\, whichever occurs last. The
data is latched by the first rising edge of CE\ or WE\. Once a byte,

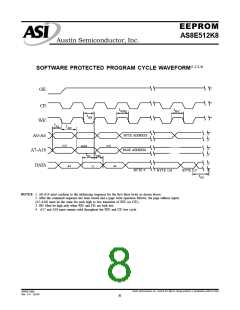

SOFTWARE DATA PROTECTION:
A software controlled data protection feature has been imple-
word or double word write has been started it will automatically time mented on theAS8E512K8. When enabled, the software data protec-
tion (SDP), will prevent inadvertent writes. The SDP feature may be
enabled or disabled by the user and is shipped with SDP disabled,
SDP is enabled by the host system issuing a series of three write
commands; three specific bytes of data are written to three specific

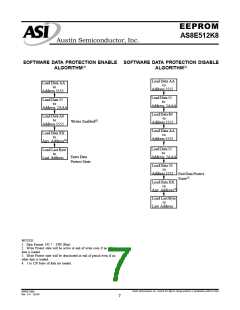

addresses (refer to Software Data Protection Algorithm). After
writing the three byte command sequence and after tWC the entire
AS8E512K8 will be protected from inadvertent write operations. It
should be noted, that once protected the host may still perform a byte
of page write to the AS8E512K8. This is done by preceding the data
to be written by the same three byte command sequence used to
enable SDP. Once set, SDP will remain active unless the disable
command sequence is issued. Power transitions do not disable SDP
and SDP will protect the AS8E512K8 during power-up and power-
down conditions. All command sequences must conform to the page
write timing specifications. The data in the enable and disable
command sequences is not written to the device and the memory
addresses used in the sequence may be written with data in either a
byte or page write operation.
itself to completion.

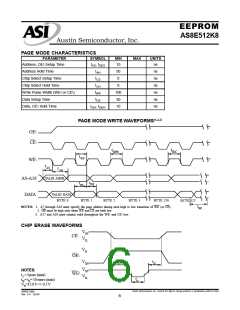

PAGEWRITE:
The page write operation of the AS8E512K8 allows 1 to 128
BWDWs of data to be written into the device during a single internal
programming period. Each new BWDW must be written within 150us
(tBLC) of the previous BWDW. If the tBLC limit is exceeded the
AS8E512K8 will cease accepting data and commence the internal
programming operation. For each WE\ high to low transition during
the page write operation, A7-A18 must be the same.
The A0-A6 inputs are used to specify which bytes within the page
are to be written. The bytes may be loaded in any order and may be
altered within the same load period. Only bytes which are specified
for writing will be written; unnecessary cycling of other bytes within
the page does not occur.

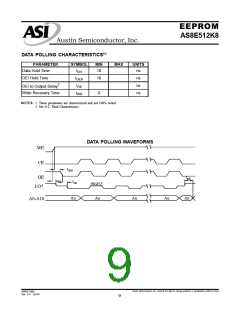

DATA\ POLLING:
The AS8E512K8 features DATA\ Polling to indicate the end of a
write cycle. During a byte or page write cycle an attempted read of
the last byte written will result in the complement of the written data
to be presented on I/O 7. Once the write cycle has been completed,
true data is valid on all outputs, and the next write cycle may begin.
DATA\ Polling may begin at anytime during the write cycle.
After setting SDP, any attempt to write to the device without the
three byte command sequence will start the internal write timers. No
data will be written to the device; however, for the duration of tWC
read operations will effectively be polling operations.
,
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
AS8E512K8
Rev. 2.0 12/99
