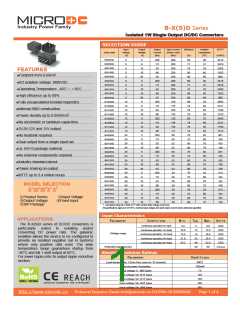

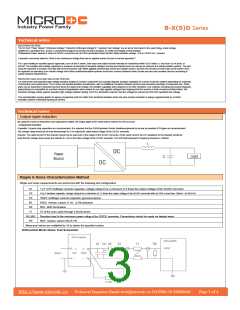

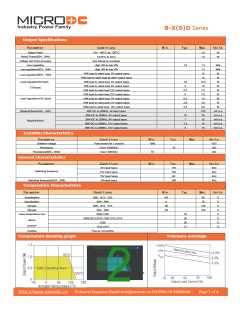

B-X(S)D Series

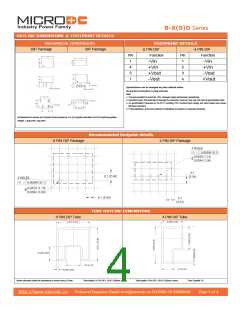

OUTLINE DIMENSIONS ＆ FOOTPRINT DETAILS
MECHANICAL DIMENSIONS
FOOTPRINT DETAILS
DIP Package
SIP Package
-8 PIN DIP
-4 PIN SIP
Function
Pin
1
Function
Pin
1
-Vin
-Vin
4
2
+Vin
+Vin
5
3
+Vout
-Vout
-Vout
+Vout
7
4
Specifcations can be changed any time without notice.
No parallel connection or plug and play.
Note:
1. The load shouldn't be less than 10%, otherwise ripple will increase dramatically.
2. Operation under 10% load will not damage the converter; However, they may not meet all specification listed.
3. All specifications measured at Ta=25°C, humidity<75%, nominal input voltage and rated output load unless
otherwise specified.
4. In this datasheet, all the test methods of indications are based on corporate standards.
All dimensions in inches ±0.01(mm±0.25mm).All pins on a 0.1(2.54) pitch and within ±0.01(0.25)of true position.
Weight: 1.48g (DIP)1.30g (SIP)
Recommended footprint details
8 PIN DIP Package
4 PIN SIP Package
TUBE OUTLINE DIMENSIONS
8 PIN DIP Tube
4 PIN SIP Tube
Unless otherwise stated all dimensions in inches (mm) ±0.5mm.
Tube length (14 Pin DIP) : 20.47 (520mm ±2mm).
Tube length (4 Pin SIP) : 20.47 (520mm ±2mm).
Tube Quantity :25
http://www.microdc.cn Technical Enquiries-Email:tech@microdc.cn Tel:0086-20-86000646
Page 4 of 4
