PIC24FJ64GA104 FAMILY

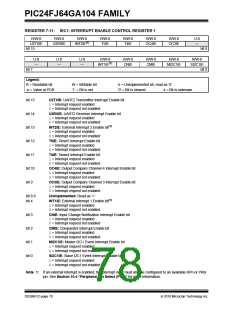

REGISTER 7-7:
IFS2: INTERRUPT FLAG STATUS REGISTER 2
U-0
—
U-0
—
R/W-0
PMPIF
U-0
—
U-0
—
U-0
—
R/W-0
OC5IF
U-0
—
bit 15
bit 8
R/W-0
IC5IF
R/W-0
IC4IF
R/W-0
IC3IF
U-0
—
U-0
—
U-0
—
R/W-0
SPI2IF
R/W-0
SPF2IF
bit 7
bit 0
Legend:
R = Readable bit
-n = Value at POR
W = Writable bit
‘1’ = Bit is set
U = Unimplemented bit, read as ‘0’
‘0’ = Bit is cleared x = Bit is unknown
bit 15-14
bit 13
Unimplemented: Read as ‘0’
PMPIF: Parallel Master Port Interrupt Flag Status bit
1= Interrupt request has occurred
0= Interrupt request has not occurred
bit 12-10
bit 9
Unimplemented: Read as ‘0’
OC5IF: Output Compare Channel 5 Interrupt Flag Status bit
1= Interrupt request has occurred
0= Interrupt request has not occurred
bit 8
bit 7
Unimplemented: Read as ‘0’
IC5IF: Input Capture Channel 5 Interrupt Flag Status bit
1= Interrupt request has occurred
0= Interrupt request has not occurred
bit 6
bit 5
IC4IF: Input Capture Channel 4 Interrupt Flag Status bit
1= Interrupt request has occurred
0= Interrupt request has not occurred
IC3IF: Input Capture Channel 3 Interrupt Flag Status bit
1= Interrupt request has occurred
0= Interrupt request has not occurred
bit 4-2
bit 1
Unimplemented: Read as ‘0’
SPI2IF: SPI2 Event Interrupt Flag Status bit
1= Interrupt request has occurred
0= Interrupt request has not occurred
bit 0
SPF2IF: SPI2 Fault Interrupt Flag Status bit
1= Interrupt request has occurred
0= Interrupt request has not occurred
DS39951C-page 74
2010 Microchip Technology Inc.
