PIC18F2480/2580/4480/4580

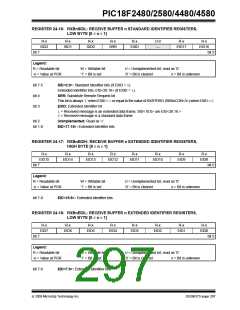

24.2.3
DEDICATED CAN RECEIVE
BUFFER REGISTERS
This section shows the dedicated CAN Receive Buffer
registers with their associated control registers.
REGISTER 24-13: RXB0CON: RECEIVE BUFFER 0 CONTROL REGISTER
R/C-0
RXFUL(1)
R/W-0
RXM1
R/W-0
RXM0
U-0
—
R-0
R/W-0
R-0
R-0
Mode 0
RXRTRRO RXB0DBEN JTOFF(2)
FILHIT0
R/C-0
RXFUL(1)
R/W-0
RXM1
R-0
R-0
R-0
R-0
R-0
R-0
Mode 1,2
RTRRO
FILHIT4
FILHIT3
FILHIT2
FILHIT1
FILHIT0
bit 7
bit 0
Legend:
C = Clearable bit
W = Writable bit
‘1’ = Bit is set
R = Readable bit
-n = Value at POR
U = Unimplemented bit, read as ‘0’
‘0’ = Bit is cleared x = Bit is unknown
bit 7
bit 6
RXFUL: Receive Full Status bit(1)
1= Receive buffer contains a received message
0= Receive buffer is open to receive a new message
Mode 0:
RXM1: Receive Buffer Mode bit 1 (combines with RXM0 to form RXM<1:0> bits, see bit 5)
11= Receive all messages (including those with errors); filter criteria is ignored
10= Receive only valid messages with extended identifier; EXIDEN in RXFnSIDL must be ‘1’
01= Receive only valid messages with standard identifier; EXIDEN in RXFnSIDL must be ‘0’
00= Receive all valid messages as per EXIDEN bit in the RXFnSIDL register
Mode 1, 2:
RXM1: Receive Buffer Mode bit 1
1= Receive all messages (including those with errors); acceptance filters are ignored
0= Receive all valid messages as per acceptance filters
bit 5
Mode 0:
RXM0: Receive Buffer Mode bit 0 (combines with RXM1 to form RXM<1:0>bits, see bit 6)
Mode 1, 2:
RTRRO: Remote Transmission Request bit for Received Message (read-only)
1= A remote transmission request is received
0= A remote transmission request is not received
bit 4
bit 3
Mode 0:
Unimplemented: Read as ‘0’
Mode 1, 2:
FILHIT4: Filter Hit bit 4
This bit combines with other bits to form filter acceptance bits<4:0>.
Mode 0:
RXRTRRO: Remote Transmission Request bit for Received Message (read-only)
1= A remote transmission request is received
0= A remote transmission request is not received
Mode 1, 2:
FILHIT3: Filter Hit bit 3
This bit combines with other bits to form filter acceptance bits<4:0>.
Note 1: This bit is set by the CAN module upon receiving a message and must be cleared by software after the
buffer is read. As long as RXFUL is set, no new message will be loaded and buffer will be considered full.
After clearing the RXFUL flag, the PIR3 bit, RXB0IF, can be cleared. If RXB0IF is cleared, but RXFUL is
not cleared, then RXB0IF is set again.
2: This bit allows same filter jump table for both RXB0CON and RXB1CON.
© 2009 Microchip Technology Inc.
DS39637D-page 293
