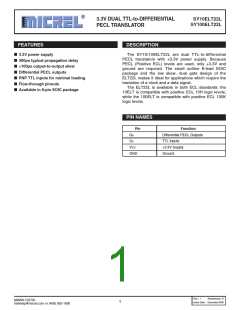

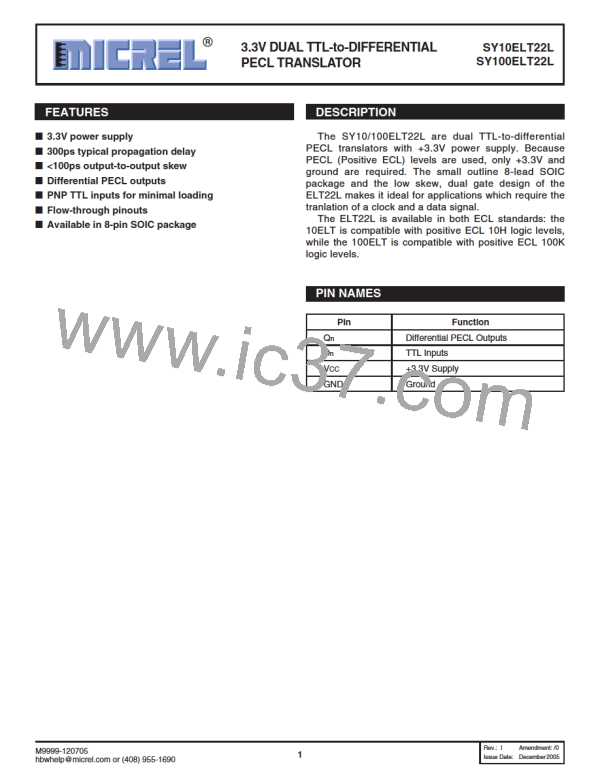

Micrel, Inc.
3.3V DUAL TTL-to-DIFFERENTIAL
PECL TRANSLATOR
SY10ELT22L
SY100ELT22L
SY10ELT22L
SY100ELT22L
FEATURES
3.3V power supply

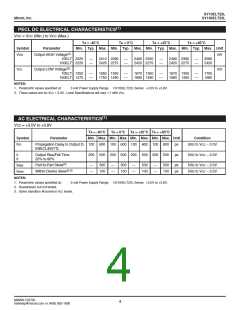

300ps typical propagation delay
<100ps output-to-output skew
Differential PECL outputs
PNP TTL inputs for minimal loading
Flow-through pinouts

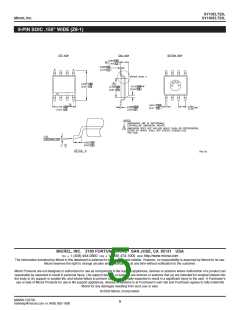

Available in 8-pin SOIC package

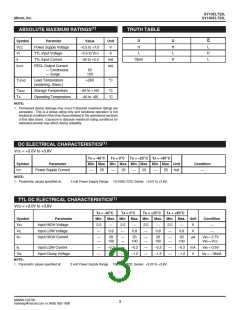

DESCRIPTION
The SY10/100ELT22L are dual TTL-to-differential
PECL translators with +3.3V power supply. Because
PECL (Positive ECL) levels are used, only +3.3V and
ground are required. The small outline 8-lead SOIC
package and the low skew, dual gate design of the
ELT22L makes it ideal for applications which require the
tranlation of a clock and a data signal.
The ELT22L is available in both ECL standards: the
10ELT is compatible with positive ECL 10H logic levels,
while the 100ELT is compatible with positive ECL 100K
logic levels.

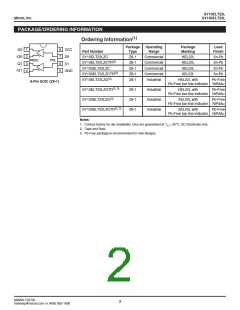

PIN NAMES
Pin
Q
n
D
n
V
CC
GND
Function
Differential PECL Outputs
TTL Inputs
+3.3V Supply
Ground
M9999-120705
hbwhelp@micrel.com or (408) 955-1690
Rev.: I
Amendment: /0
1
Issue Date: December 2005
