71M6543F/H and 71M6543G/GH Data Sheet
Pin
Name

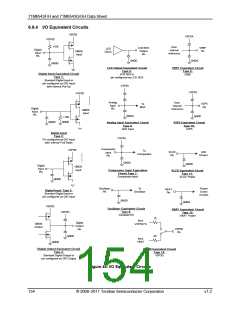

Type Circuit
Function
Chip Reset. This input pin is used to reset the chip into a
known state. For normal operation, this pin is pulled low. To
reset the chip, this pin should be pulled high. This pin has
an internal 30 μA (nominal) current source pulldown. No
external reset circuitry is necessary.
91
RESET
I
2
UART0 Input. If this pin is unused it must be terminated
to V3P3D or GNDD.
55
54
81
RX
TX
I
O
I
3
4
7
UART0 Output
Enables Production Test. This pin must be grounded in
normal operation.
TEST
Pushbutton Input. This pin must be at GNDD when not active
or unused. A rising edge sets the WF_PB flag. It also
causes the part to wake up if it is in SLP or LCD mode. PB
does not have an internal pullup or pulldown resistor.
90
PB
NC
I
3
26, 40,
48, 49,
50, 73,
74, 77,
78, 79
N/C
—
No Connection. Do not connect this pin.
v1.2
© 2008–2011 Teridian Semiconductor Corporation
153
