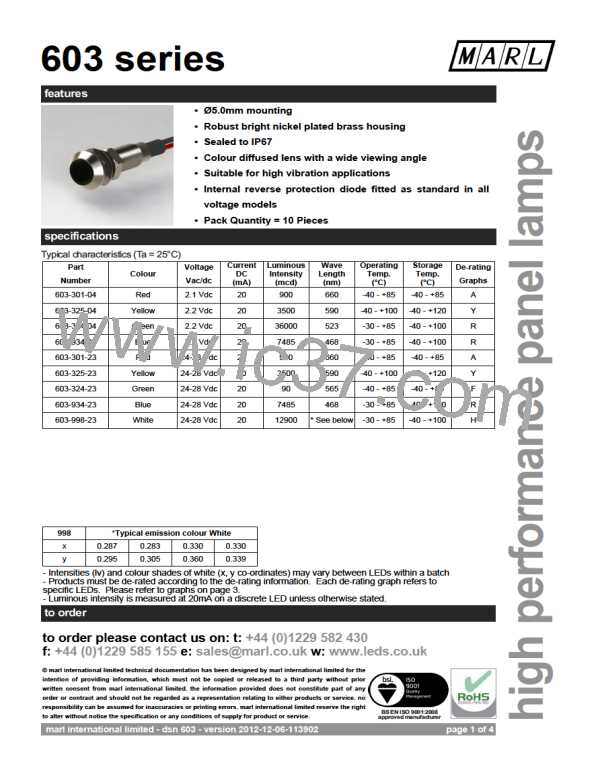

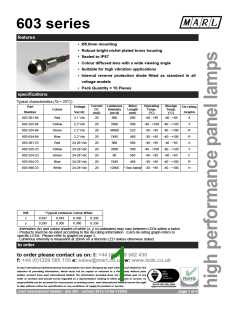

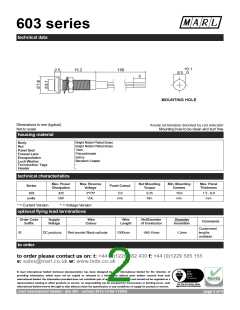

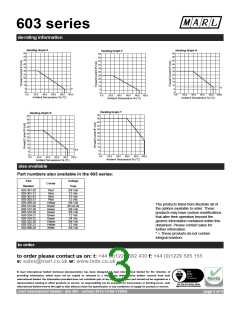

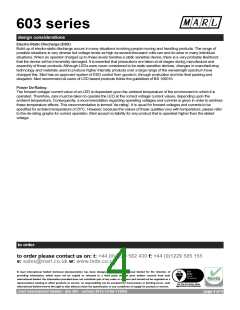

603 series
technical data
+0.1
5 0
2.5
15.2
150
5
MOUNTING HOLE
Dimensions in mm (typical)
Not to scale
Anode termination denoted by red indicator
Mounting hole to be clean and burr free
housing material
Bright Nickel Plated Brass
Body
Bright Nickel Plated Brass
Nut
Viton
Polycarbonate
Epoxy
Beryllium Copper
-
-
Panel Seal
Fresnel Lens
Encapsulation
Lock Washer
Termination Tags
Header
technical characteristics
Max. Power
Series
Dissipation
Max. Reverse
Nut Mounting
Torque
Min. Mounting
Centres
Max. Panel
Thickness
Panel Cutout
Voltage
3*/75^
Vdc
603
425
5.0
0.35
10.0
1.5 - 8.0
units
mW
mm
Nm
mm
mm
* = Current Version
^ = Voltage Version
optional flying lead terminations
Order Code
Suffix
Supply
Voltage
Wire
Wire
No/Diameter
of Conductor
Diameter
Insulation
Comments
Colour
Length
Customised
lengths
19
DC products
Red-anode/ Black-cathode
1000mm
19/0.15mm
1.2mm
available
to order
to order please contact us on: t: +44 (0)1229 582 430 f: +44 (0)1229 585 155
e: sales@marl.co.uk w: www.leds.co.uk
© marl international limited technical documentation has been designed by marl international limited for the intention of
providing information, which must not be copied or released to
a third party without prior written consent from marl
international limited. the information provided does not constitute part of any order or contract and should not be regarded as a
representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl
international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.
BS EN ISO 9001:2008
approved manufacturer
marl international limited - dsn 603 - version 2012-12-06-113902
page 2 of 4
