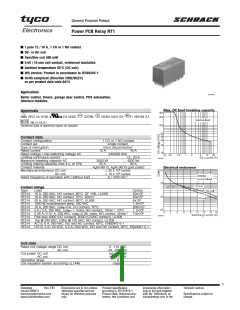

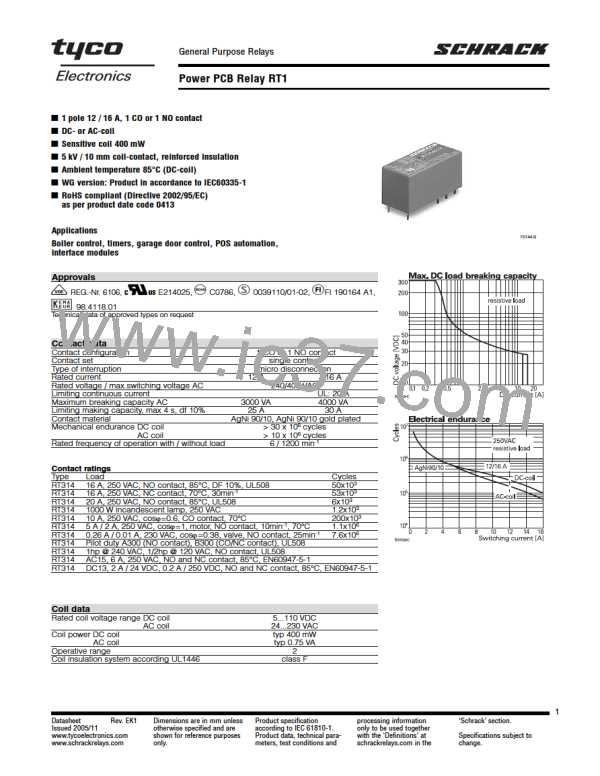

General Purpose Relays
Power PCB Relay RT1
I
I
I
I
I
I
I
1 pole 12 / 16 A, 1 CO or 1 NO contact
DC- or AC-coil
Sensitive coil 400 mW
5 kV / 10 mm coil-contact, reinforced insulation
Ambient temperature 85°C (DC-coil)
WG version: Product in accordance to IEC60335-1
RoHS compliant (Directive 2002/95/EC)
as per product date code 0413
Applications
F0144-B
Boiler control, timers, garage door control, POS automation,
interface modules
Approvals
V
REG.-Nr. 6106,
Z
E214025,
B
C0786,
S
0039110/01-02,
F
FI 190164 A1,
H
98.4118.01
types on request
Technical data of approved
Contact data
Contact configuration
1 CO or 1 NO contact
Contact set
single contact
Type of interruption
micro disconnection
Rated current
12 A
16 A
Rated voltage / max.switching voltage AC
240/400 VAC
Limiting continuous current
UL: 20 A
Maximum breaking capacity AC
3000 VA
4000 VA
Limiting making capacity, max 4 s, df 10%
25 A
30 A
Contact material
AgNi 90/10, AgNi 90/10 gold plated
Mechanical endurance DC coil
> 30 x 10
6
cycles
AC coil
> 10 x 10
6
cycles
Rated frequency of operation with / without load
6 / 1200 min
-1
Contact
Type
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
RT314
ratings
Load
Cycles
16 A, 250 VAC, NO contact, 85°C, DF 10%, UL508
50x10
3
-1
16 A, 250 VAC, NC contact, 70°C, 30min
53x10
3
20 A, 250 VAC, NO contact, 85°C, UL508
6x10
3
1000 W incandescent lamp, 250 VAC
1.2x10
3
10 A, 250 VAC, cosϕ=0.6, CO contact, 70°C
200x10
3
-1
5 A / 2 A, 250 VAC, cosϕ=1, motor, NO contact, 10min , 70°C
1.1x10
6
-1
0.26 A / 0.01 A, 230 VAC, cosϕ=0.38, valve, NO contact, 25min
7.6x10
6
Pilot duty A300 (NO contact), B300 (CO/NC contact), UL508
1hp @ 240 VAC, 1/2hp @ 120 VAC, NO contact, UL508
AC15, 6 A, 250 VAC, NO and NC contact, 85°C, EN60947-5-1
DC13, 2 A / 24 VDC, 0.2 A / 250 VDC, NO and NC contact, 85°C, EN60947-5-1
Coil data
Rated coil voltage range DC coil
AC coil
Coil power DC coil
AC coil
Operative range
Coil insulation system according UL1446
5...110 VDC
24...230 VAC
typ 400 mW
typ 0.75 VA
2
class F
1
Datasheet
Rev. EK1
Issued 2005/11
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information
only to be used together
with the 'Definitions' at
schrackrelays.com in the
‘Schrack’ section.
Specifications subject to
change.
