TE Connectivity
AMPMODU MTE Interconnect System

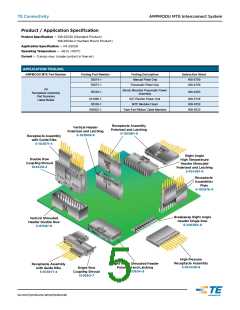

Product / Application Specification
Product Specification — 108-25034 (Standard Product)
108-25034-2 (Surface Mount Product)
Application Specification — 114-25026
Operating Temperature — -65 to +105°C
Current — 3 amps max. (single contact in free air)
APPꢀꢁCATꢁOꢂ TOOꢀꢁꢂꢃ
AMPMODU MTE Part Number
Tooling Part Number
58074-1
Tooling Description
Instruction Sheet
408-6790
Manual Pistol Grip
58075-1
Pneumatic Pistol Grip
408-6789
All
Bench Mounted Pneumatic Power
Assembly
58338-1
408-9393
Receptacle Assembly
Part Numbers
Listed Below
931800-1
58336-1
IDC Electric Power Unit
MTE Modular Head
409-5746
408-9359
409-5832
856002-1
Tube Fed Ribbon Cable Machine
Receptacle Assembly
Polarized and Latching
Vertical Header
Polarized and Latching
5-103961-9
5-103908-9
Receptacle Assembly
with Guide Ribs
5-103971-4
Right Angle
High Temperature
Header Shrouded
Polarized and Latching
5-104361-9
Double Row
Coupling Shroud
104500-2
Receptacle
Assemblies
Plain
5-103976-4
Breakaway Right Angle
Header Single Row
6-146306-0
Vertical Shrouded
Header Double Row
5-87587-6
High Pressure
Receptacle Assembly
5-104439-9
Right Angle Shrouded Header
Polarized and Latching
5-103634-9
Receptacle Assembly
with Guide Ribs
5-103971-4
Single Row
Coupling Shroud
103680-7
te.com/products/ampmodumte
