Product Bin and Labeling Definitions
Decoding Product Bin Labeling
In the manufacturing of semiconductor products, there are variations in performance around the average values given in the
technical datasheet. For this reason, Lumileds bins LED components for luminous flux or radiometric power, color point, peak or
dominant wavelength and forward voltage.
Reels of LUXEON Rebel Far Red, Deep Red, Red, Red-Orange, PC Amber, Amber, Green, Cyan, Blue and Royal Blue are labeled
using a 3-digit alphanumeric CAT code following the format below:
A B C
Where:
A
–
designates luminous flux or radiometric power bin (example: Deep Red D=300 to 350 lumens,
Green K=70 to 80 lumens)
B
C
–
–

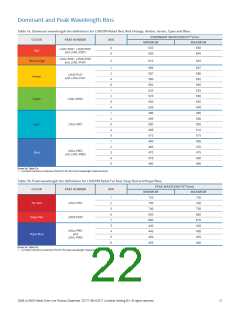

designates peak or dominant wavelength bin (example: Green 2=525 to 530nm, Cyan 2=495 to 500nm)
designates forward voltage bin (example: Far Red U=1.60 to 1.80V, Green B=2.55 to 2.79V)
Therefore, LUXEON Rebel Green with a lumen range of 70 to 80, a dominant wavelength of 525 to 530nm and a forward voltage
range of 2.55 to 2.79V has the following CAT code:
K 2 B
Reels of LUXEON Rebel Lime are labeled using a 4-digit alphanumeric CAT code following the format below:
A B C D
Where:
A
–
–
–
designates luminous flux bin (example: F=150 to 160 lumens, J=180 to 190 lumens, M=210 to 220 lumens)
designates color bin (example: A0)
B C
D
designates forward voltage bin (example: P=2.60 to 2.75V, R=2.75 to 3.00V)
Therefore, LUXEON Rebel Lime with a lumen range of 180 to 190, color bin A0 and a forward voltage range of 2.75 to 3.00V has
the following CAT code:
J A 0 R
DS68 LUXEON Rebel Color Line Product Datasheet 20171106 ©2017 Lumileds Holding B.V. All rights reserved.
18
