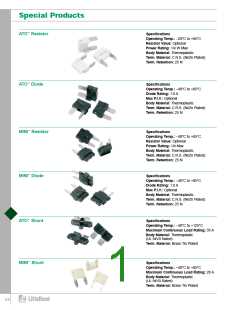

S p e c ia l P ro d u c t s
ATO™ Resistor
Specifications
Operating Temp.: –20°C to +85°C
Resistor Value: Optional
Power Rating: 1/4 W Max
Body Material: Thermoplastic
Term. Material: C.R.S. (Ni/Zn Plated)
Term. Retention: 25 N
ATO™ Diode
Specifications
Operating Temp.: –40°C to +85°C
Diode Rating: 1.0 A
Max P.I.V.: Optional
Body Material: Thermoplastic
Term. Material: C.R.S. (Ni/Zn Plated)
Term. Retention: 25 N
MINI™ Resistor
Specifications
Operating Temp.: –40°C to +85°C
Resistor Value: Optional
Power Rating: 1/4 Max
Body Material: Thermoplastic
Term. Material: C.R.S. (Ni/Zn Plated)
Term. Retention: 25 N
MINI™ Diode
Specifications
Operating Temp.: –40°C to +85°C
Diode Rating: 1.0 A
Max P.I.V.: Optional
Body Material: Thermoplastic
Term. Material: C.R.S. (Ni/Zn Plated)
Term. Retention: 25 N
ATO™ Shunt
Specifications
Operating Temp.: –40°C to +125°C
Maximum Continuous Load Rating: 35 A
Body Material: Thermoplastic
(UL 94V0 Rated)
Term. Material: Brass Tin Plated
MINI™ Shunt
Specifications
Operating Temp.: –40°C to +85°C
Maximum Continuous Load Rating: 20 A
Body Material: Thermoplastic
(UL 94V0 Rated)
Term. Material: Brass Tin Plated
2 4
