Data Sheet
ESTW010A0A Series Eighth-Brick Power Modules
November 29, 2011
36–75Vdc Input; 5.0Vdc Output; 10A Output Current
Each tray contains a total of 12 power modules. The
trays are self-stacking and each shipping box for the
surface mount module (suffix –S) will contain 4 full trays
plus one empty hold down tray giving a total number of
48 power modules.

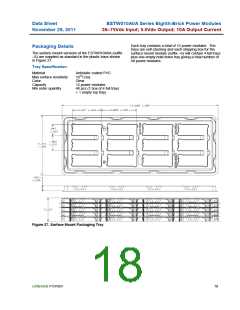

Packaging Details
The surface mount versions of the ESTW010A0A (suffix
–S) are supplied as standard in the plastic trays shown
in Figure 27.
Tray Specification
Material
Max surface resistivity
Color
Antistatic coated PVC
1012 /sq
Clear
Capacity
Min order quantity
12 power modules
48 pcs (1 box of 4 full trays
+ 1 empty top tray)
Figure 27. Surface Mount Packaging Tray
LINEAGE POWER
18
